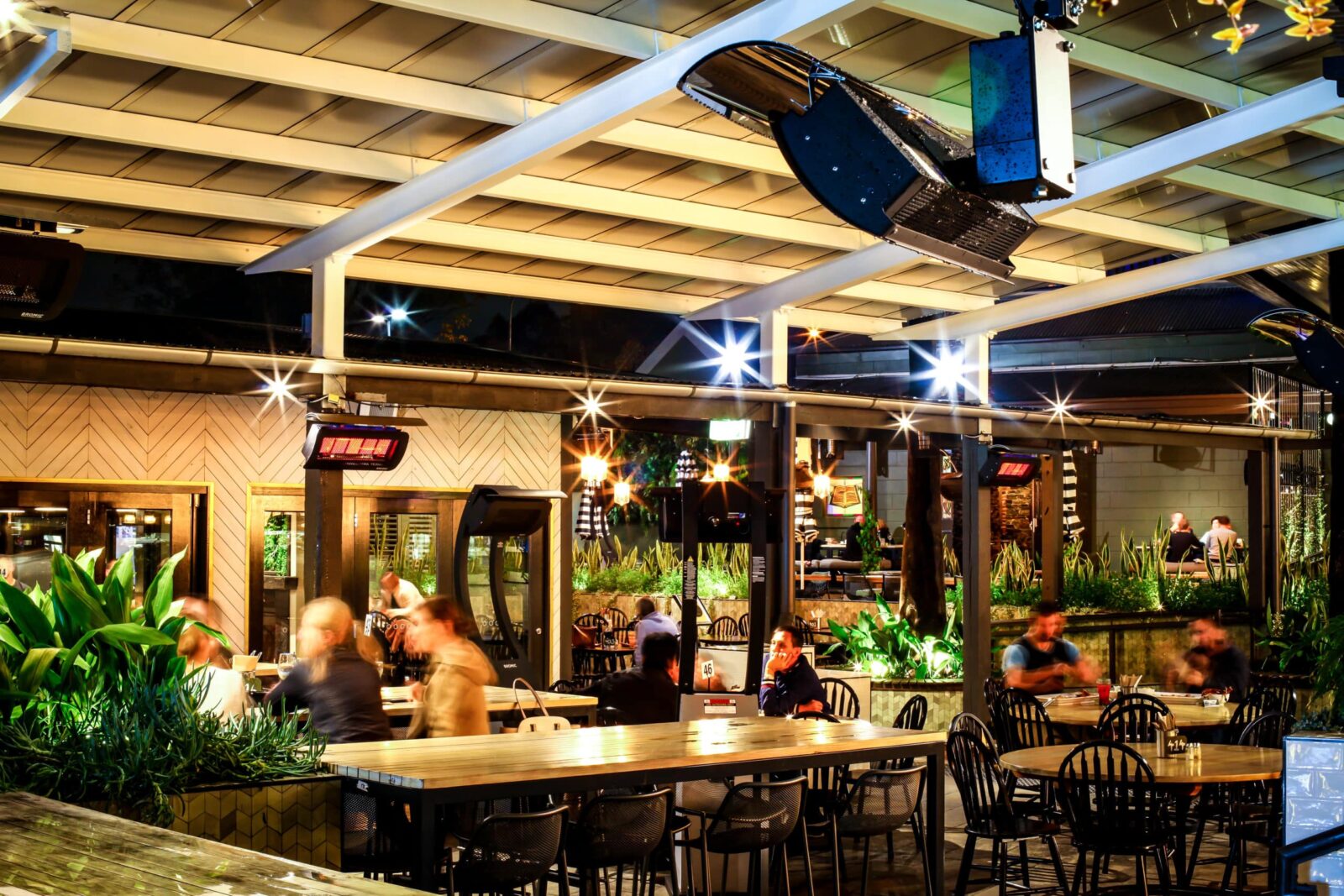

Outdoor Gas Heater At Chiswick Restaurant Sydney

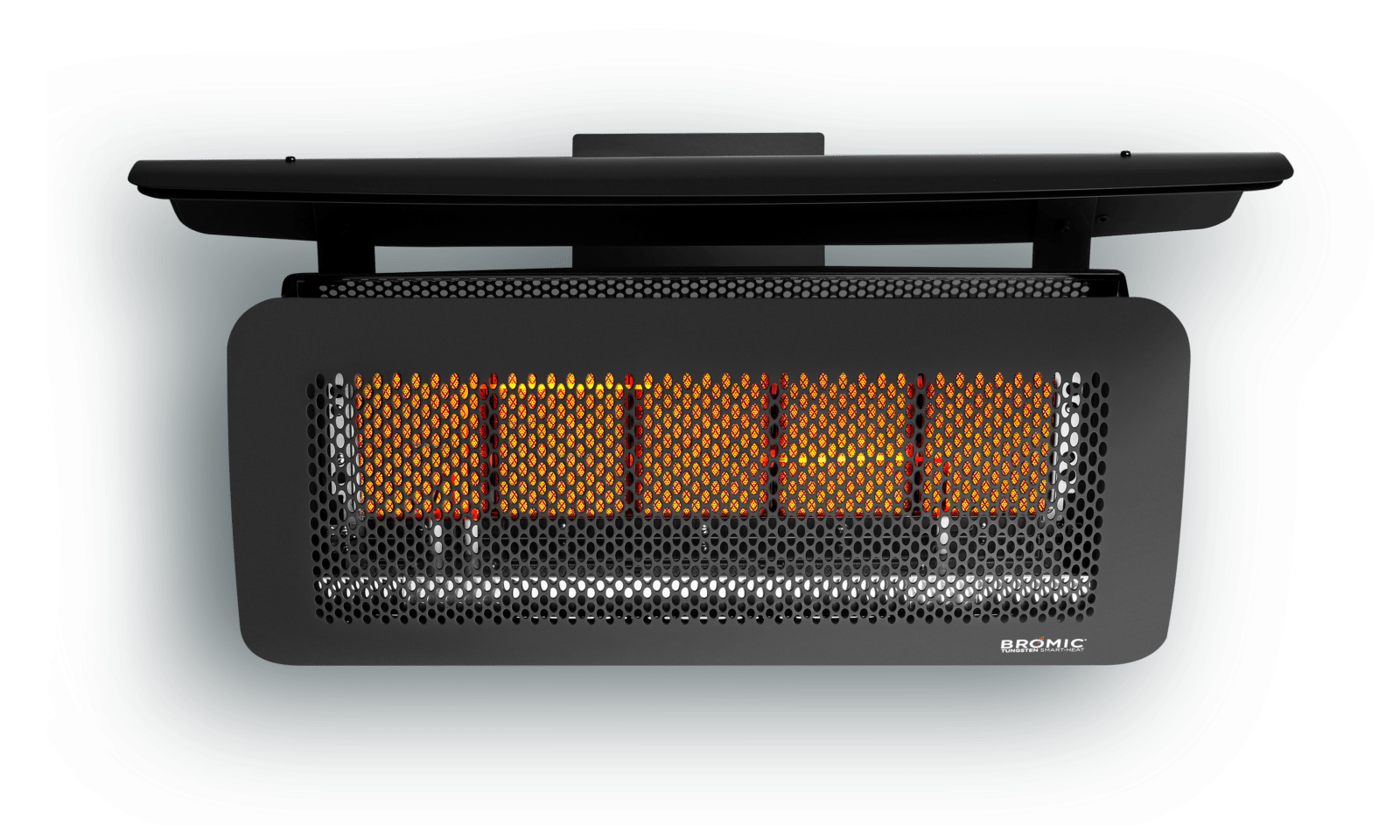

Tungsten Smart-Heat™ Gas

Durability meets power. The award-winning Tungsten Smart-Heat™ Gas heater series combines high-performance stainless-steel construction with strong, directional heating. Available in matte black, with two power output levels and a selection of ceiling and wall mounting options.
Outdoor Gas Heater
  • More
    Close
    Patented Performance

    Superior wind resistance (up to 8mph), thanks to Bromic’s patented screen and ionization probe technology.

  • More
    Close
    Ultra-Durable Design

    Matte black stainless-steel body for reliable heating performance and durability.

  • More
    Close
    High Performance Mesh Screen

    Maximize performance and deliver a superior spread of heat with the unique honeycomb mesh screen.

  • More
    Close
    Pivot Arm Bracket

    For greater directional control of the heater (rotates 25 degrees on each side), making it easy to adjust the flow of heat, so radiant heat is delivered where it’s needed.

  • More
    Close
    Mutliple Installation Options

    A versatile range of ceiling and wall mounting options makes it easy to reclaim valuable floor space.

  • More
    Close
    Enhanced Safety Features

    An integrated “Flame Failure Safety Shut-off Control” turns the heater off immediately should it not re-ignite for any reason

  • More
    Close
    Set and forget

    Simple and easy to use, with smart system compatibility and automated re-ignition.

  • More
    Close
    Patented Direct Ignition System

    Instantaneous ignition, whenever you require it, without the need for a pilot light.

  • More
    Close
    Environmental Efficiency

    Slow-release ceramic burners are supremely efficient and the most environmentally-friendly gas-fired heating method available.

Specifications

Please reference the specification guide below to help you select the correct solution for your needs.

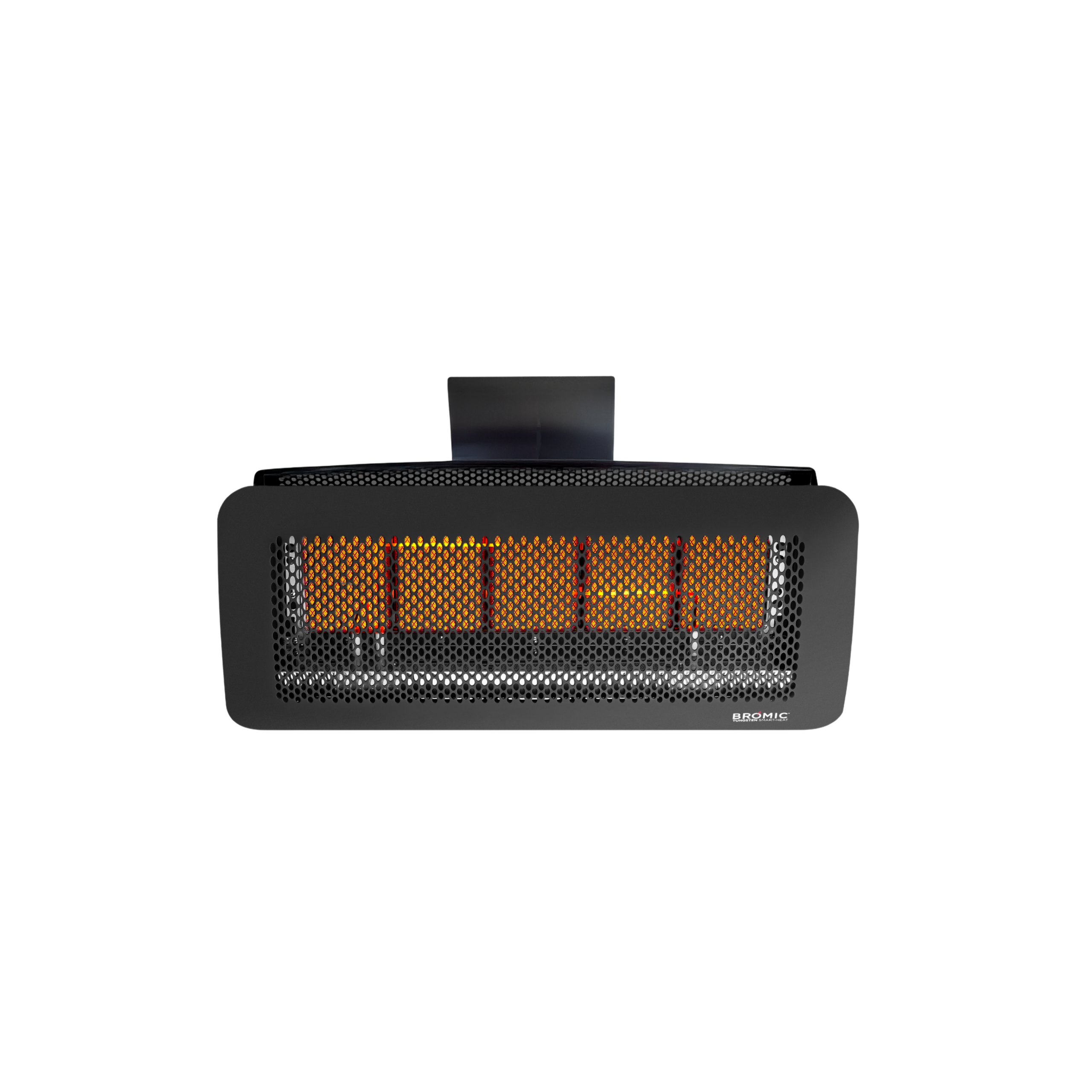

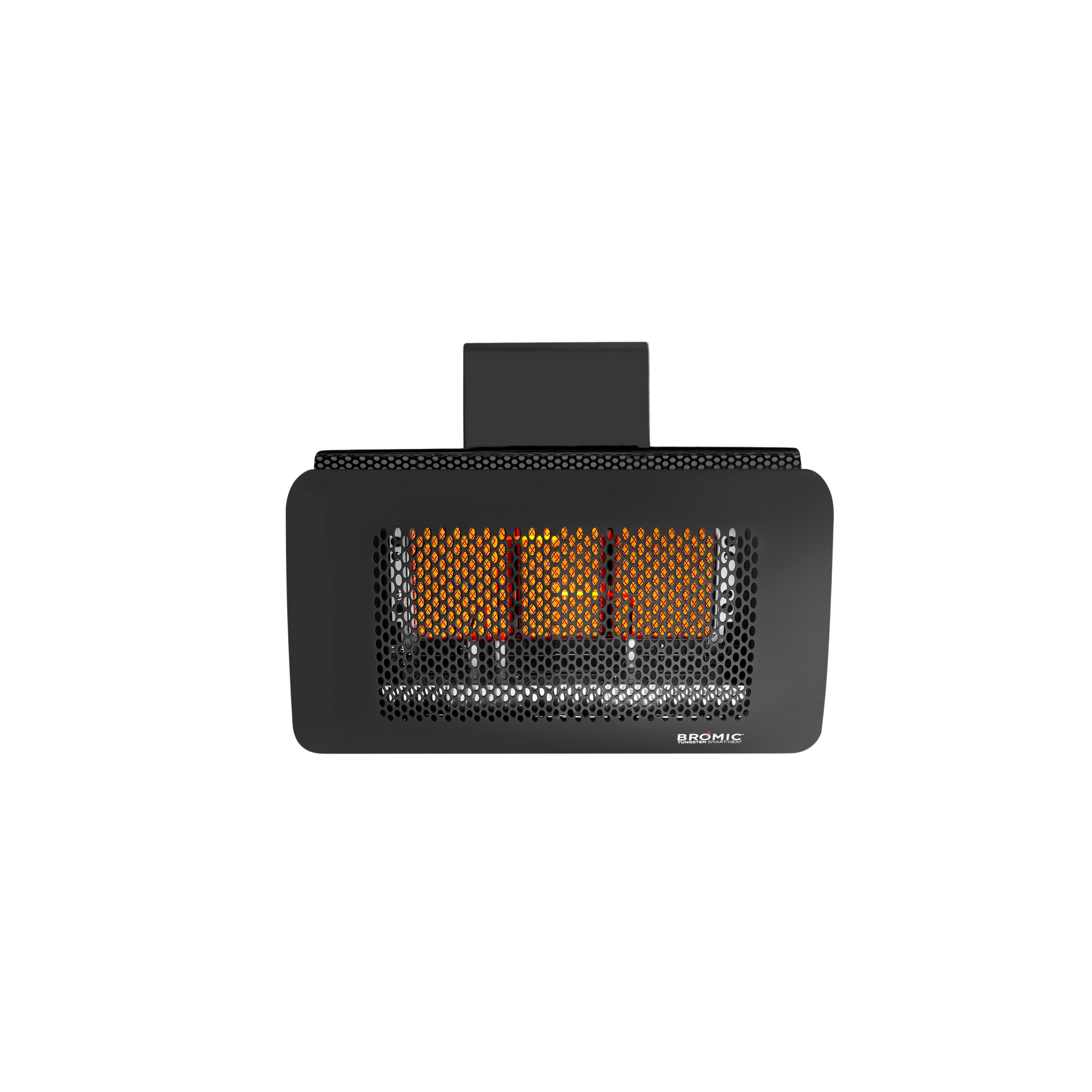

MODEL NUMBER 300 SERIES 500 SERIES
FUEL TYPE LPG          |  NG LPG          |  NG
OUTPUT 26,000 BTU 43,000 BTU
COLOR MATTE BLACK MATTE BLACK
HEAT AREA 160ft2 215ft2
ELECTRICAL CONNECTION 110V/2A 110V/2A
MINIMUM FLOOR CLEARANCE 96” 96”
Downloads

Dimensions



Heat Blooms

Mounting Options

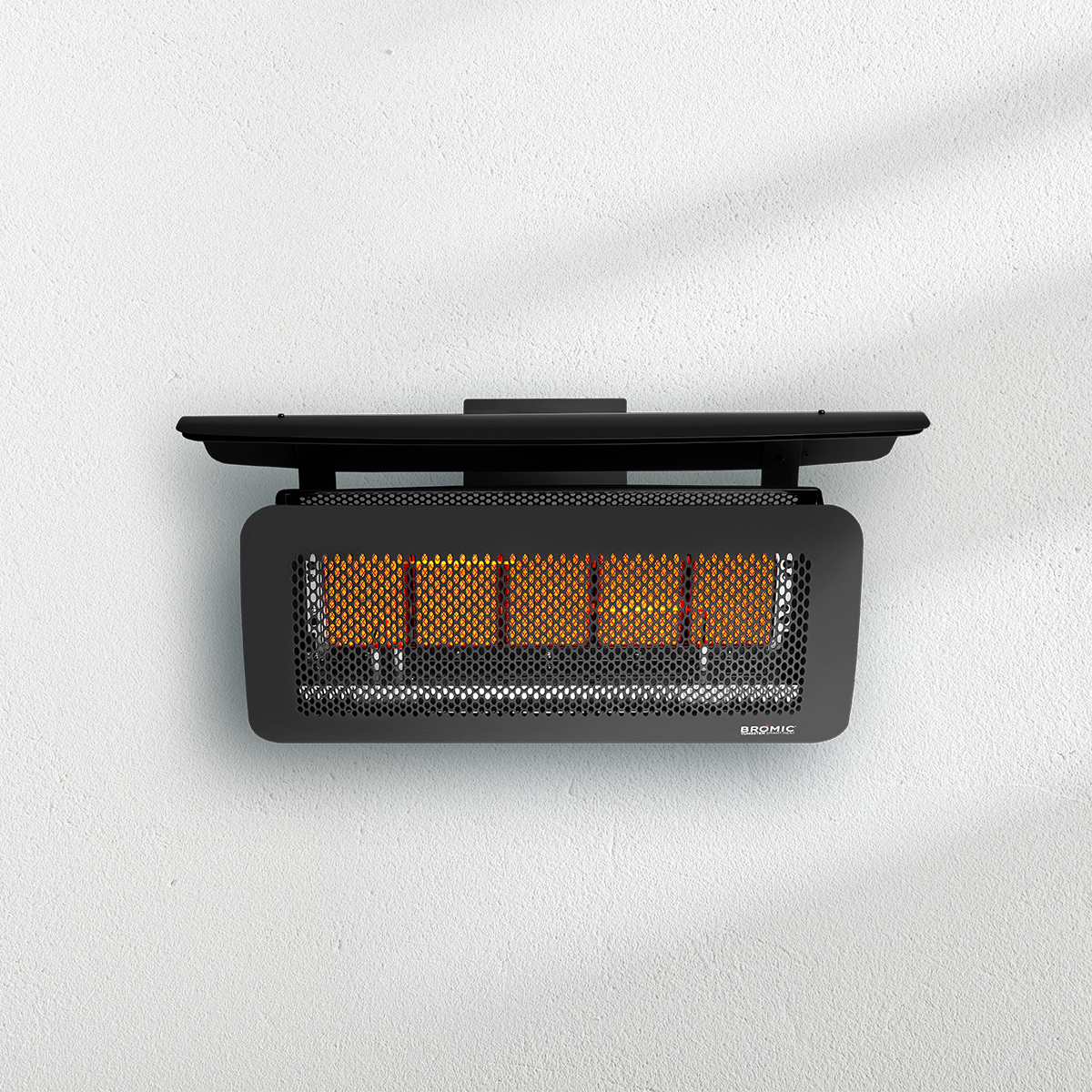

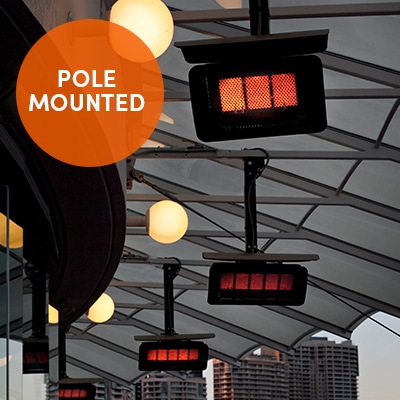

The heater can be wall mounted or hung from the ceiling (with optional Ceiling Post Mount). The optimum height is 8 feet from the floor to the bottom of the heater. If the distance above the heater is less than 42 inches or if the heater will be open to the elements, a heat deflector is recommended.

Clearances

Installation

Installation must be carried out by a licensed and authorized technician in accordance with local building codes. Please refer to our installation manual for further details.





Downloads

BIM Files

To download BIM files, fill out the form below:
This field is for validation purposes and should be left unchanged.

Wiring Diagrams

Downloads

FAQs

Is the output of the heater adjustable?

Our gas heaters are on/off only. If you're looking for a dimmable option, the we would recommend our Bromic electric heaters, which allow for more precise control over the heat output.

How do I control the heater?

We recommend adding the Bromic On/Off controller and wireless remote, so the heater can be turned off and on from the comfort of your home. Alternatively, the heater can also be controlled via a standard wall switch.

Can this heater be connected to a smart home or building automation system?

Yes, the heater can be connected to smart home and building technology, provided the system has been fitted with a RS232 port. For this, you require our On/Off Controller and our Bromic Smart-Heat Link RS232 plugin.

Could this be installed indoors, assuming all clearances are met?

No. All Bromic Gas Heaters are intended for outdoor use. In a four sided area of installation, at least 25% of the wall area must be open, and 30% of the remaining walls must be open.
