Specifications
Please reference the specification guide below to help you select the correct solution for your needs.
| MODEL |
2300W SERIES |
2300W SERIES |
3400W SERIES |
3400W SERIES |
4500W SERIES |
4500W SERIES |
| FUEL TYPE |
ELECTRIC |
ELECTRIC |
ELECTRIC |
ELECTRIC |
ELECTRIC |
ELECTRIC |

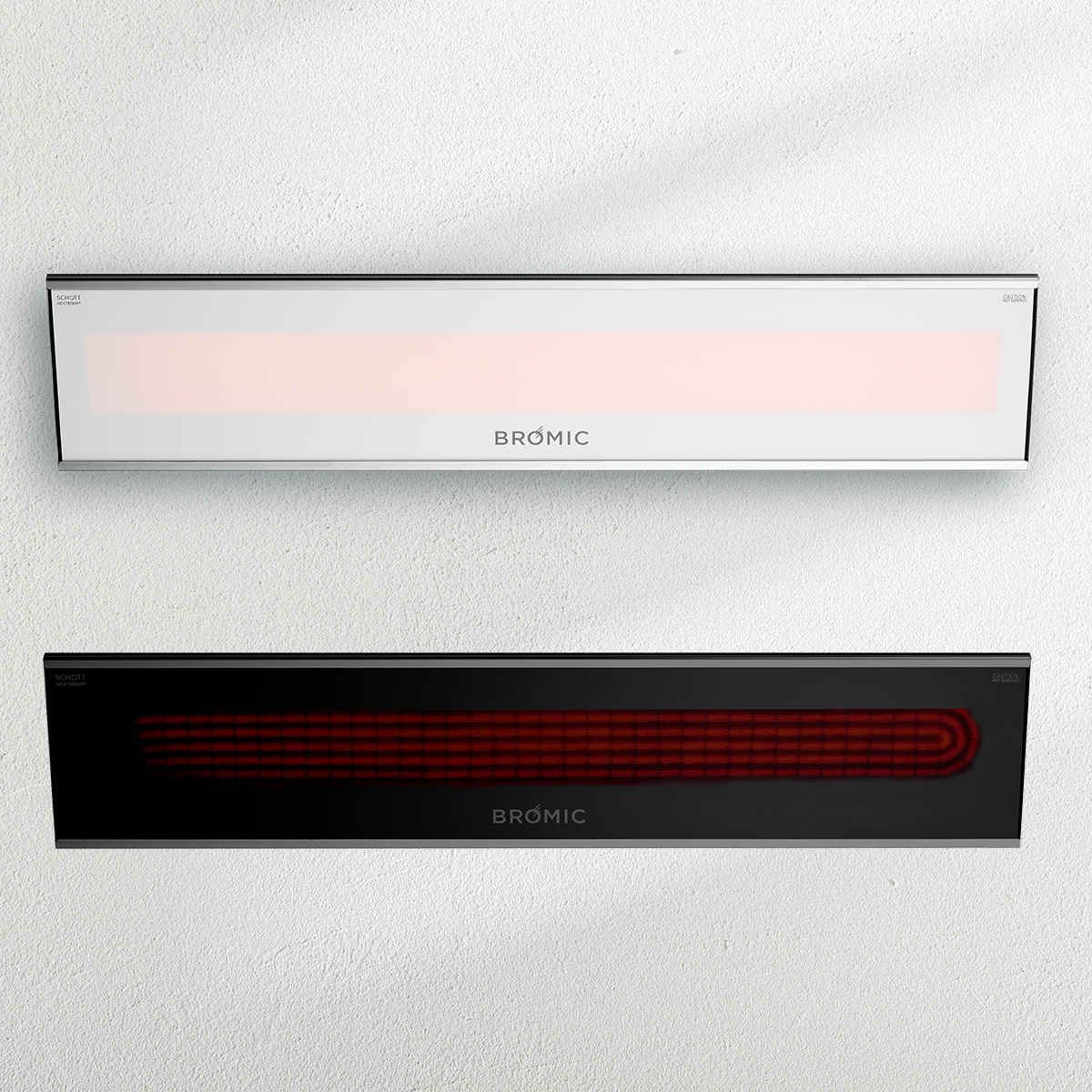

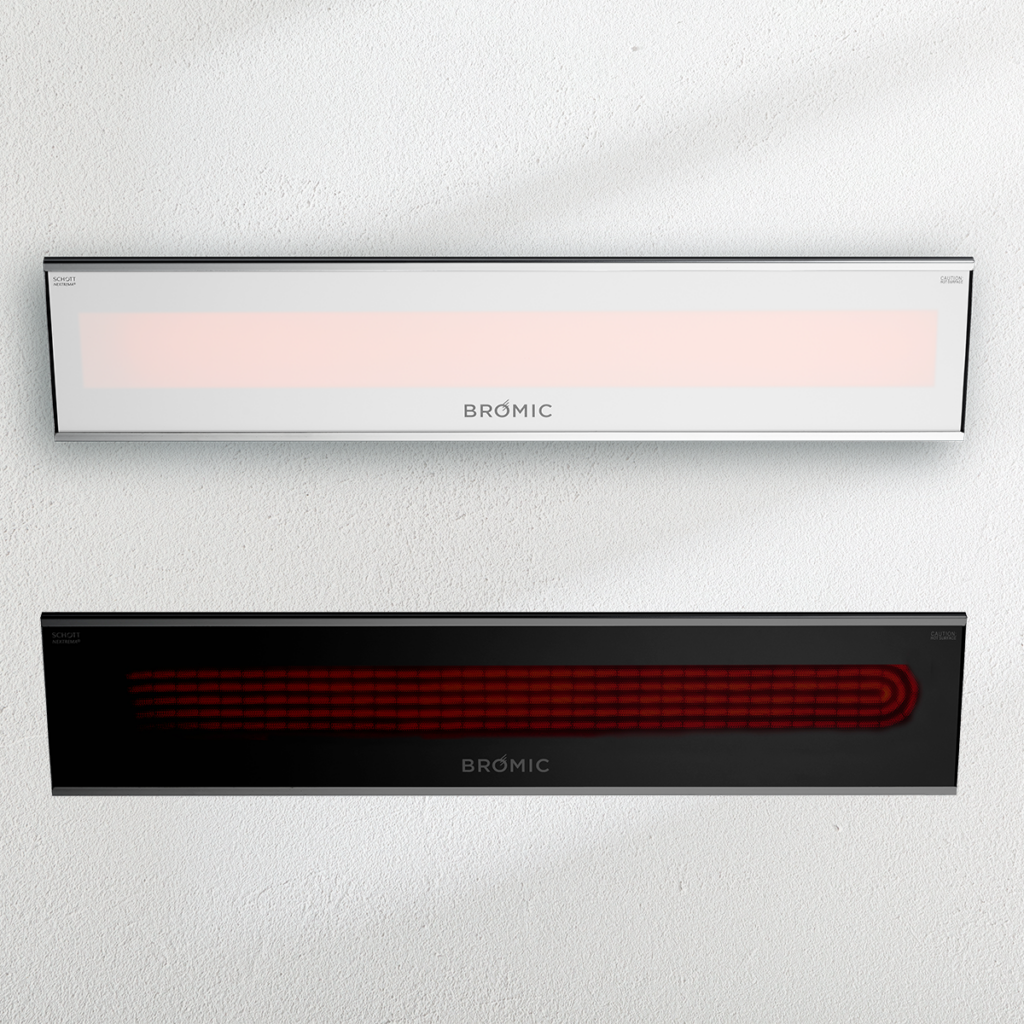

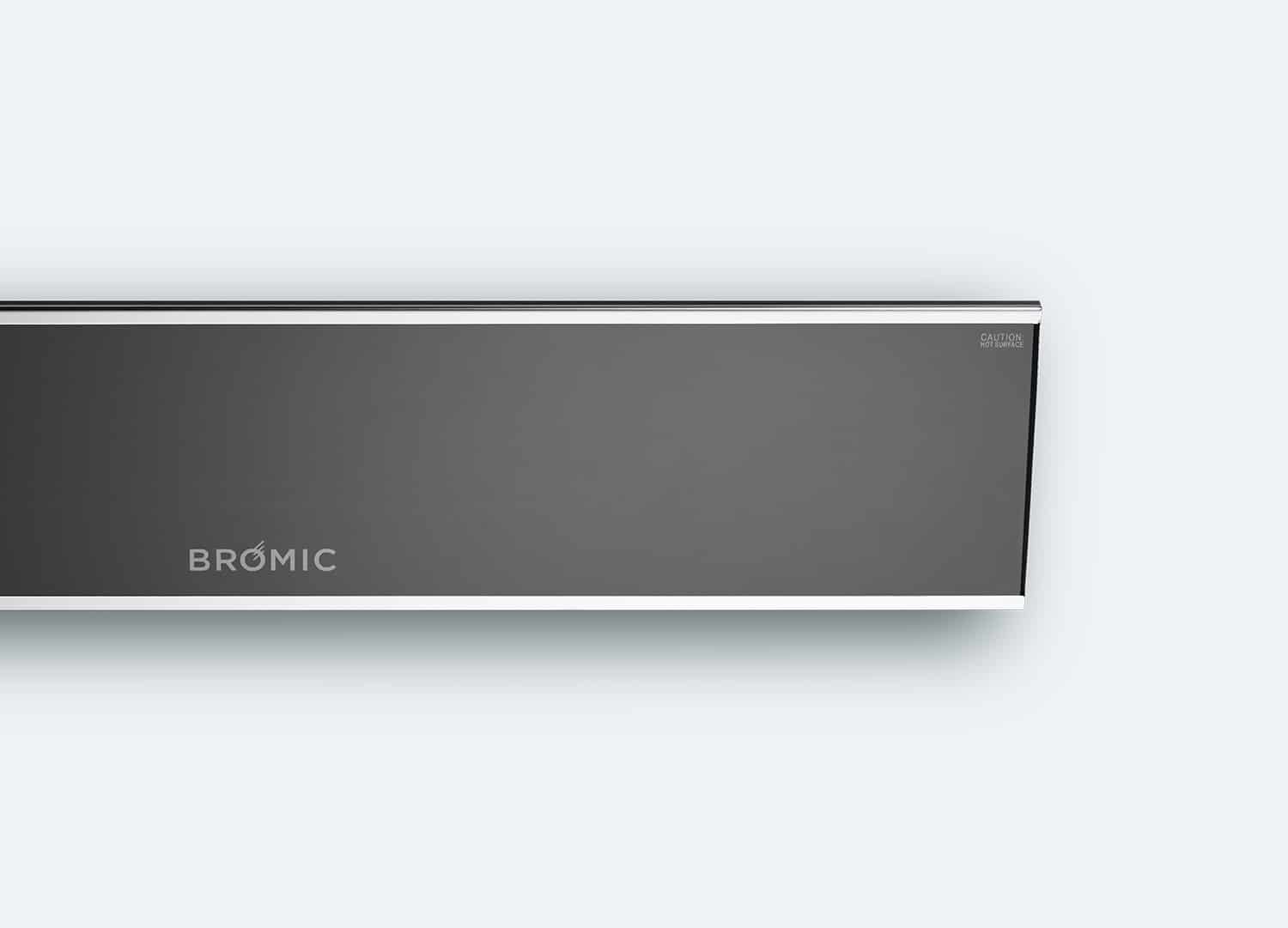

| COLOR |
BLACK |
WHITE |
BLACK |
WHITE |
BLACK |
WHITE |
| MODEL # |
BH0320003 |
BH0320007 |
BH0320005 |
BH0320008 |
BH3622000 |
BH3622001 |
| HEAT AREA |
65ft2 |
65ft2 |
108ft2 |
108ft2 |
143ft2 |
143ft2 |
| RATED CURRENT * |
220-240V/9.6A
208V/11.1A |
220-240V/9.6A
208V/11.1A |
220-240V/14.2A
208V/16.3A |
220-240V/14.2A
208V/16.3A |
220-240V/18.8A
208V/21.6A |
220-240V/18.8A
208V/21.6A |
| MINIMUM FLOOR CLEARANCE |
Wall 72”
Ceiling 96” |
Wall 72”
Ceiling 96” |
Wall 72”
Ceiling 96” |
Wall 72”
Ceiling 96” |
Wall 72”
Ceiling 96” |
Wall 72”
Ceiling 96” |
| CONTROL OPTIONS |
2300W SERIES |
3400W SERIES |
4500W SERIES |

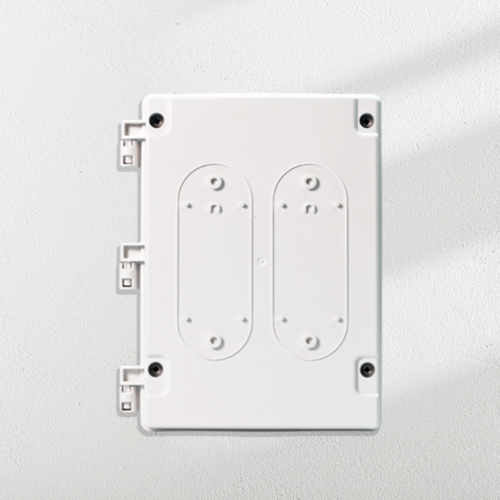

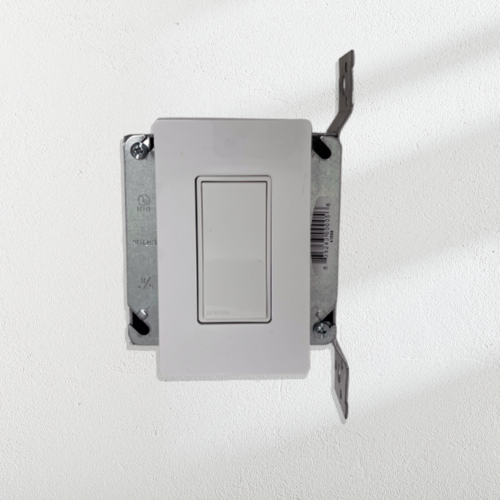

| ON | OFF |
✓ |
✓ |
✓ |

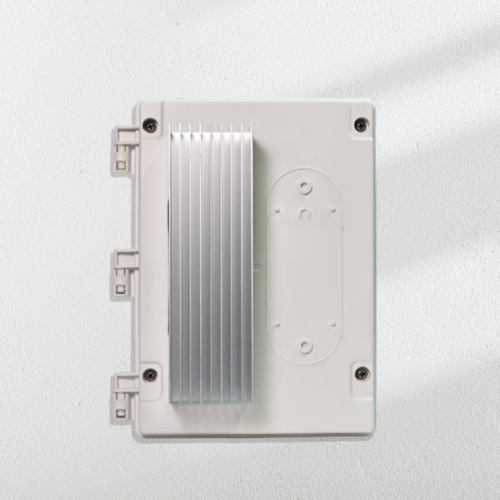

| DIMMER REMOTE |
✓ |
✓ |
✓ |
| MASTER REMOTE ** |
✓ |
✓ |
✓ |
*Available in varying voltages: 220/240v and 208V.
**Independently control up to six zones of heaters with unlimited heaters per zone from a single remote. Dimmer controller required. Control operates within 100ft of heaters.
Downloads
Installation
Installation must be carried out by a licensed and authorized technician in accordance with local electrical codes. Please refer to our clearance requirements and consult the installation manual for further details.
Downloads
BIM Files
To download BIM files, fill out the form below:
FAQs
Do the Platinum Electric heaters come with a controller?
No, the controllers can be purchased as an additional accessory.
Can I install the Platinum Electric heater myself?
No, the heater must be installed by a licensed technician.
What is radiant heat?
Radiant heat works like the sun. Instead of heating the air around you, it heats people and objects. This makes radiant heat more effective as an outdoor heating source, as it is less likely to be affected by the wind.
Can the Platinum Electric Heater get wet?

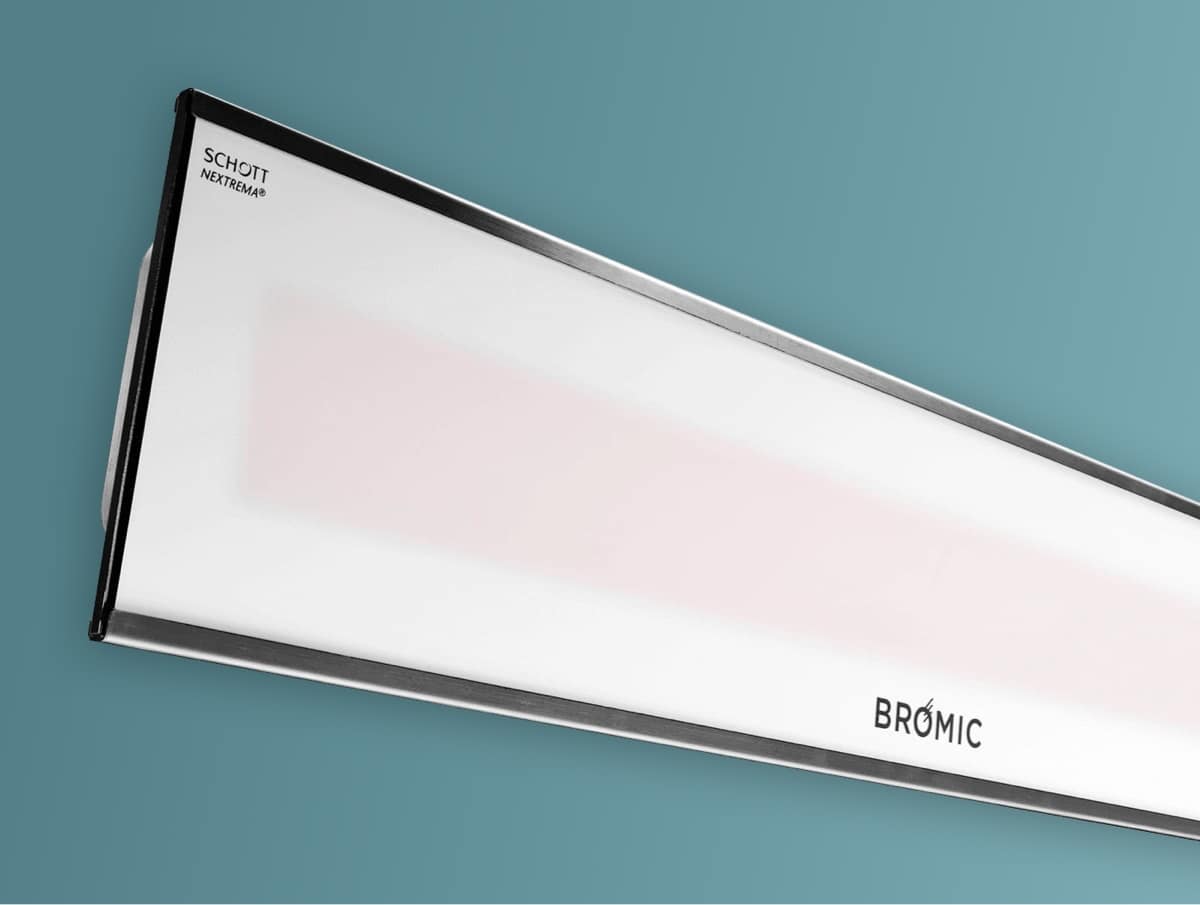

Although our Platinum Electric heaters are made from premium 304 stainless steel and engineered for longevity, Bromic recommends that they are best mounted under cover and not directly exposed to rain, snow and salt mist to ensure they maintain their aesthetic appeal.
What mounting options are available?

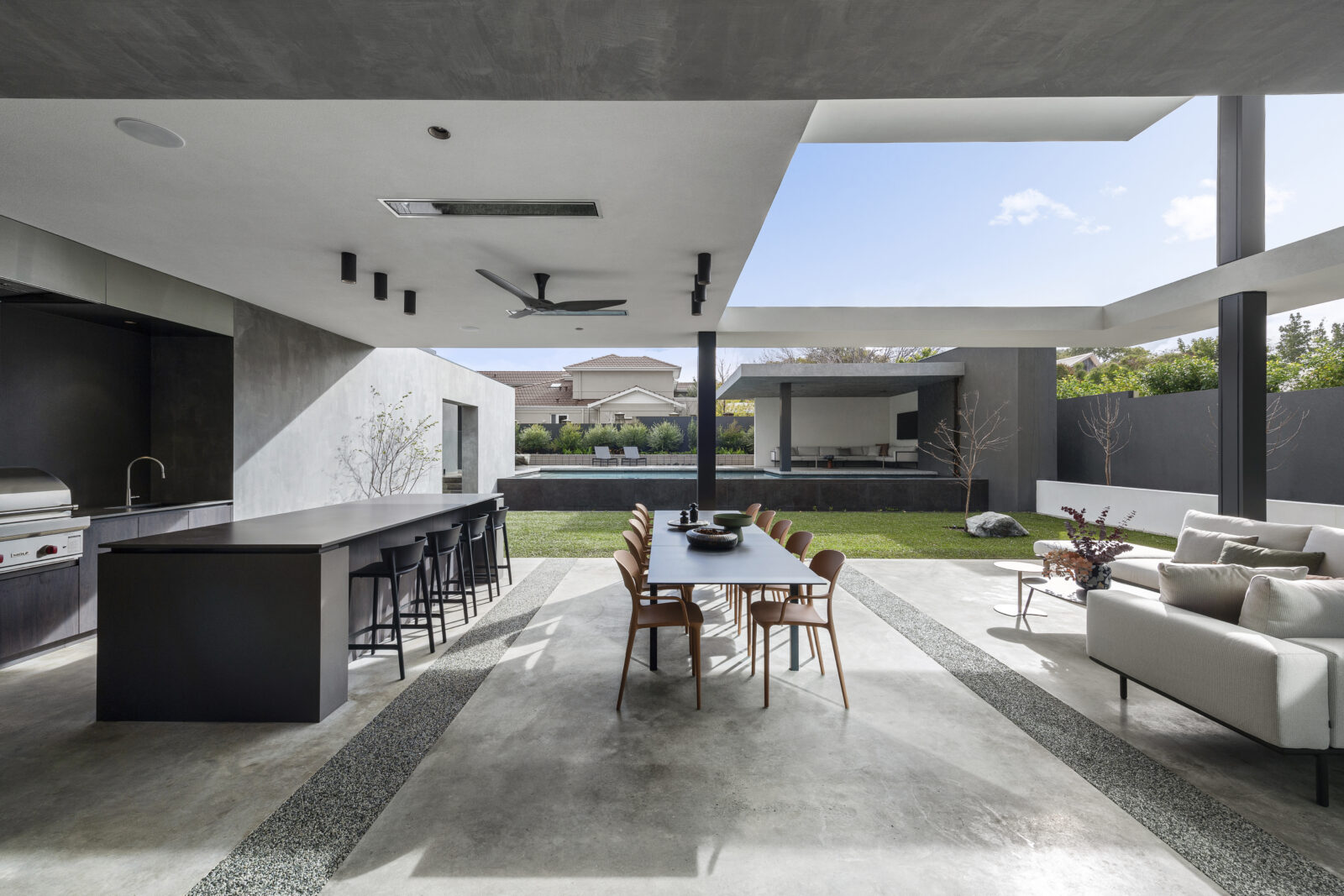

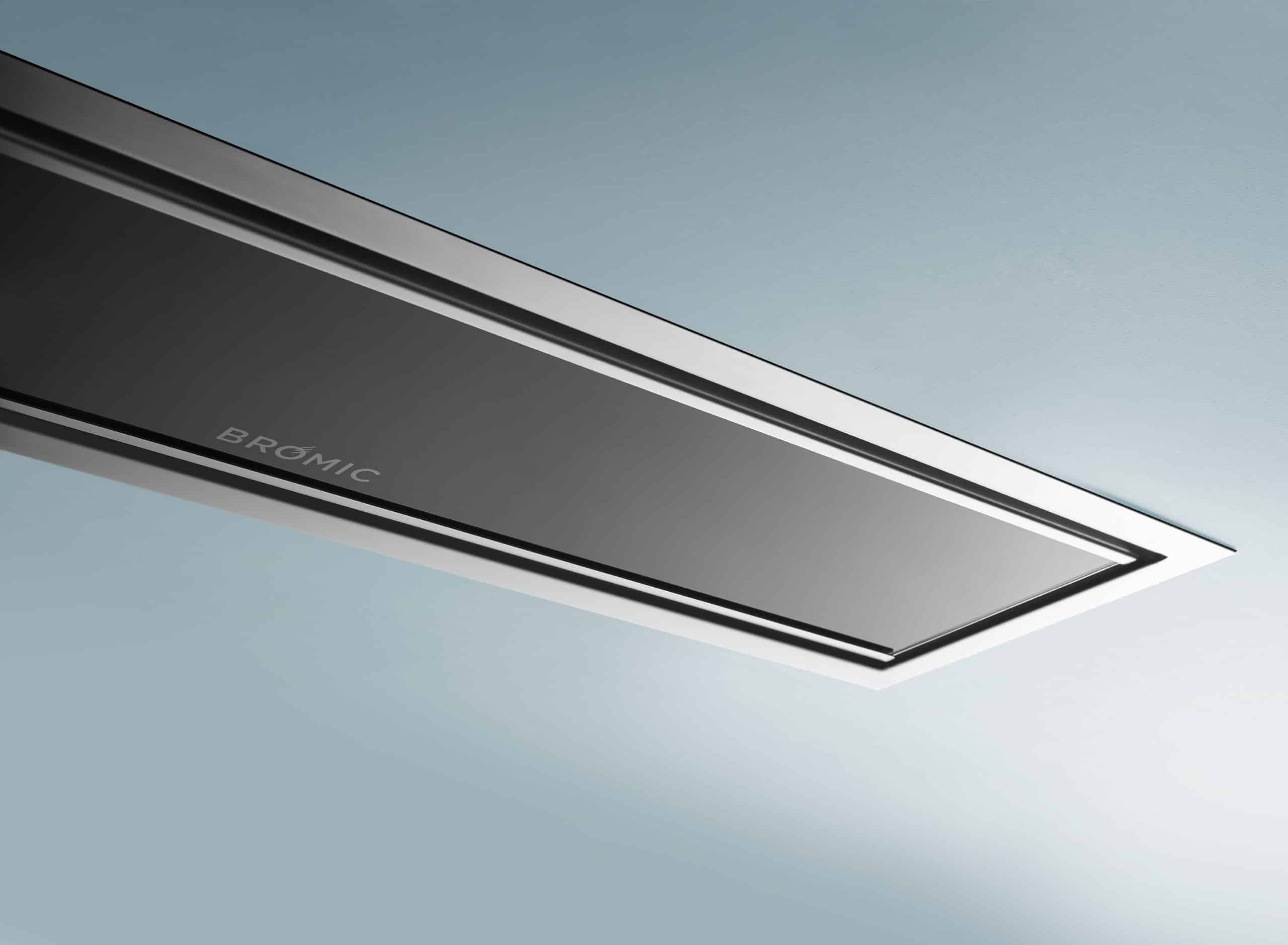

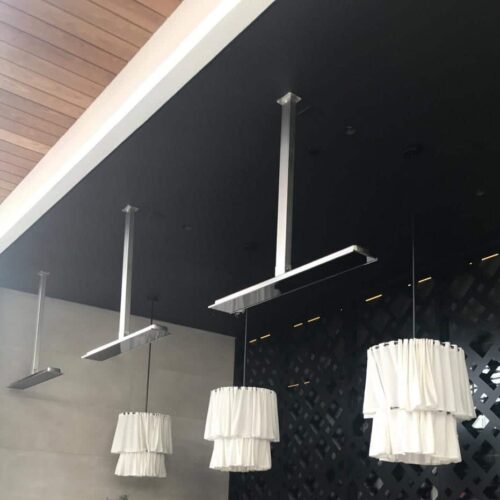

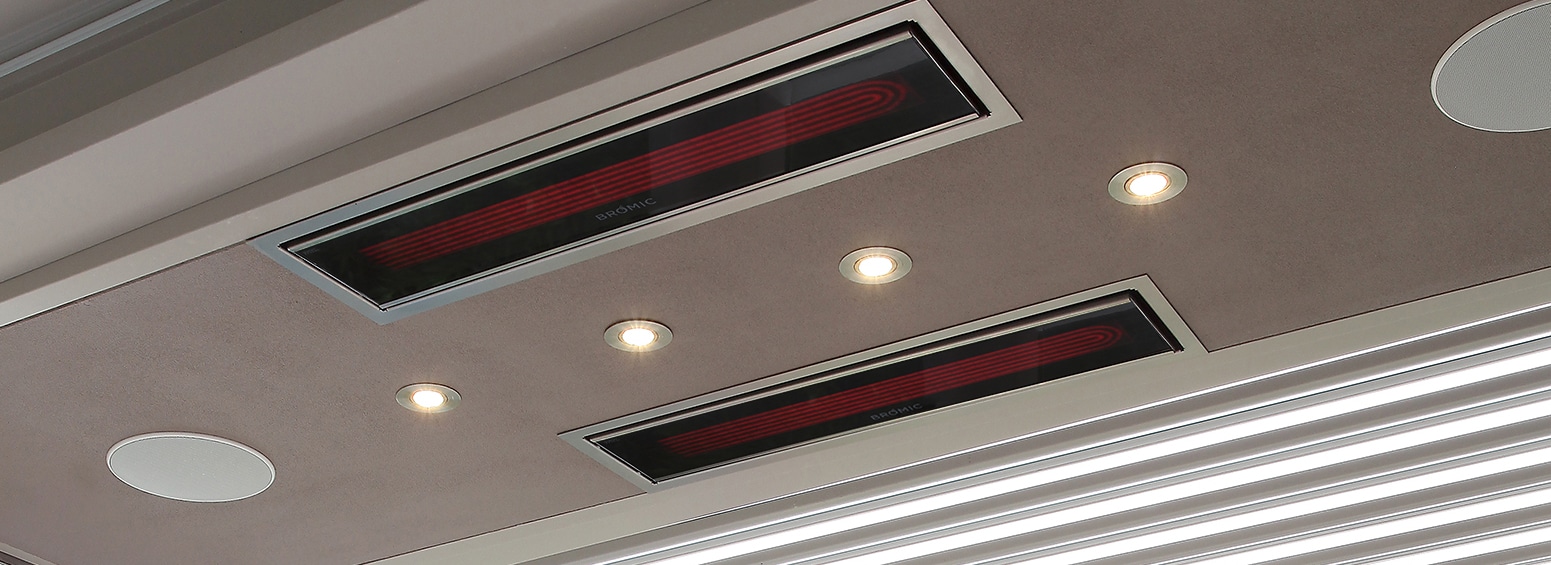

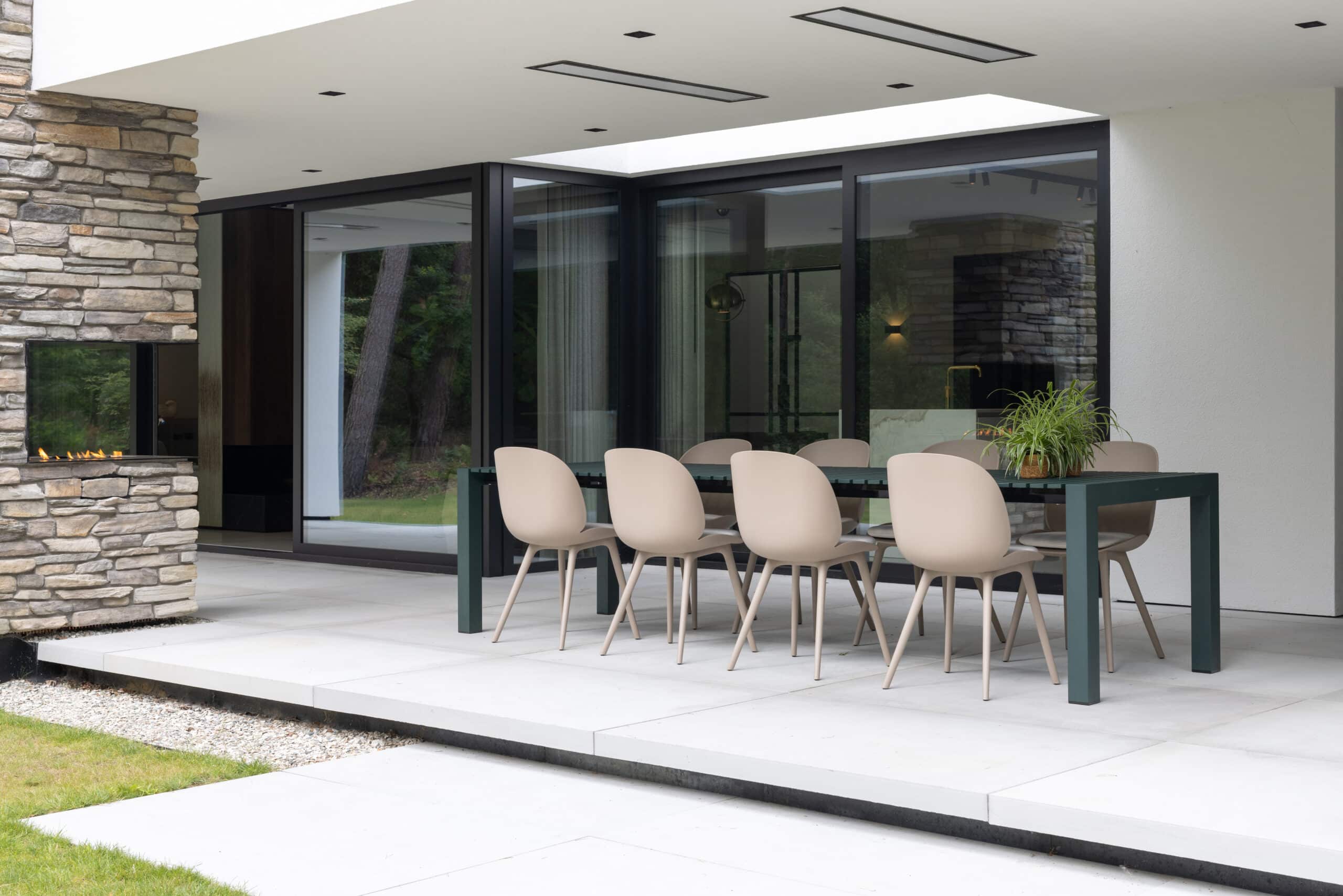

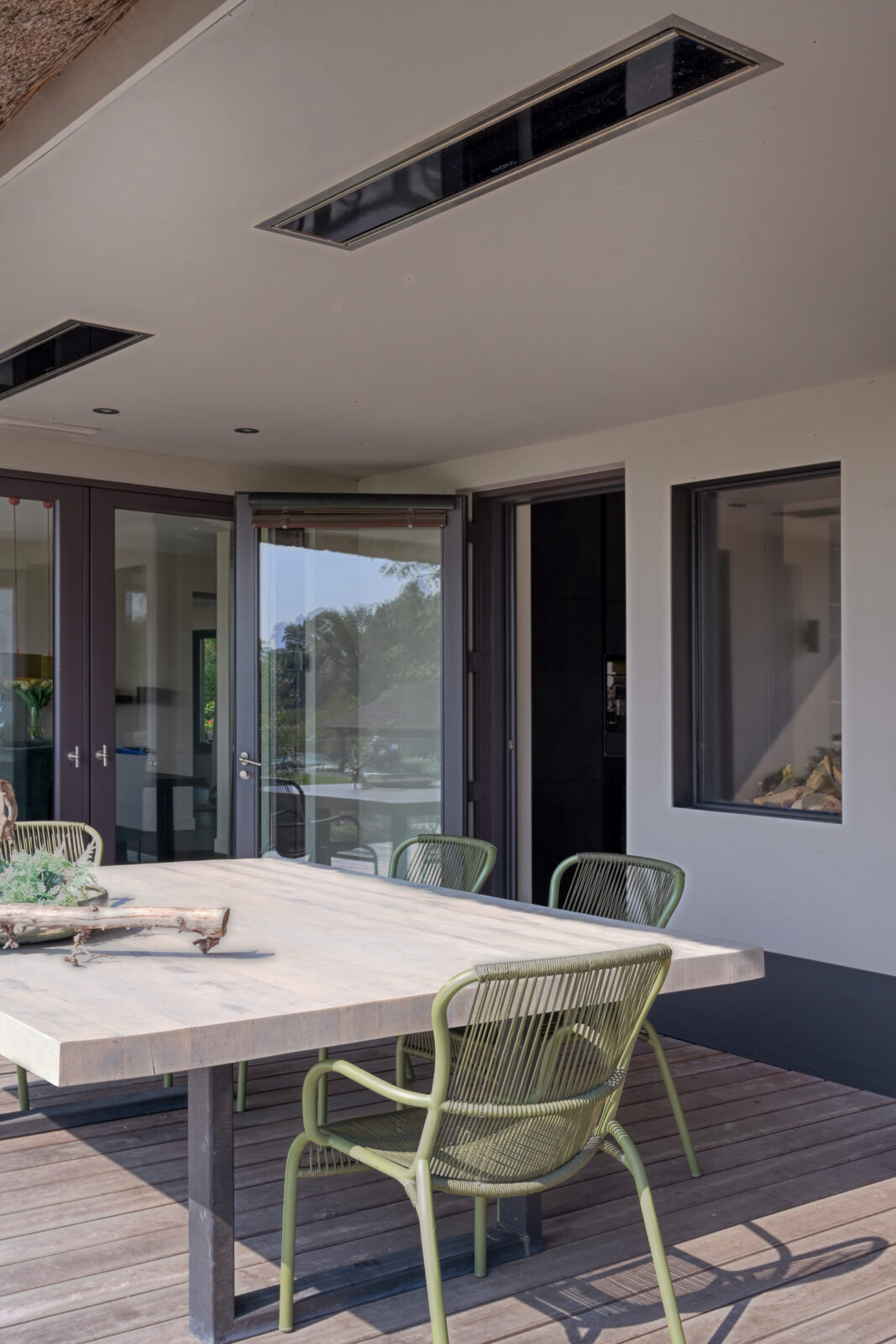

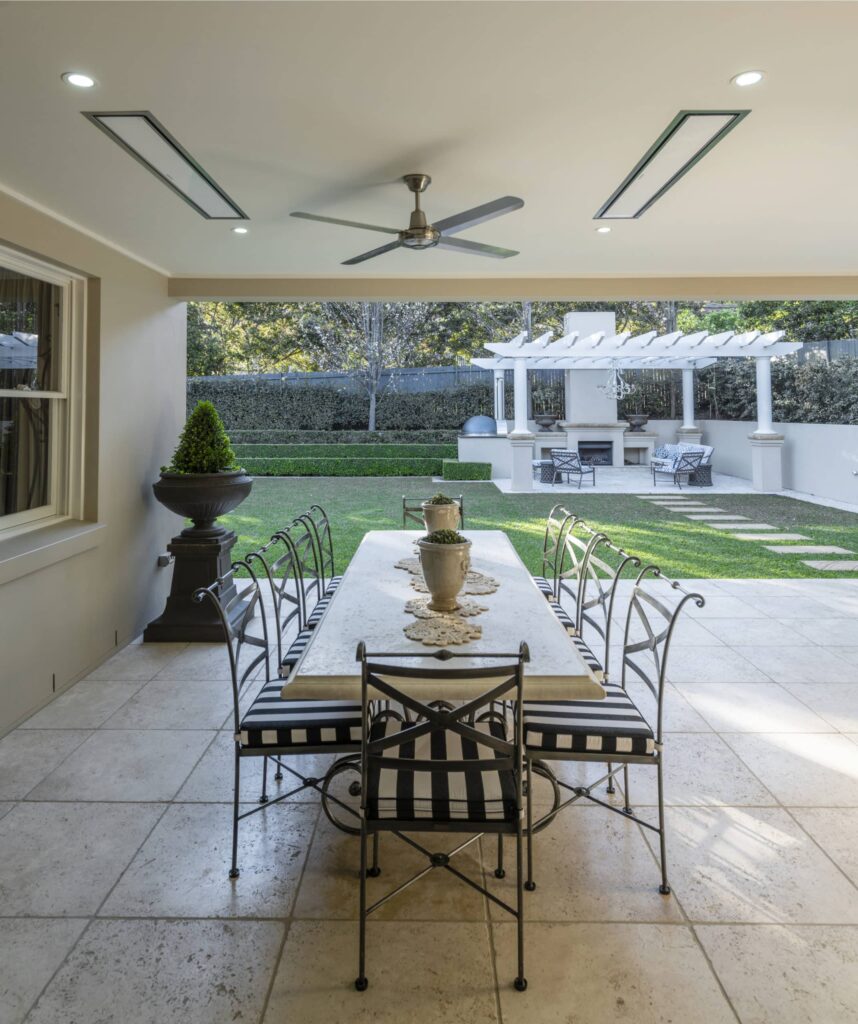

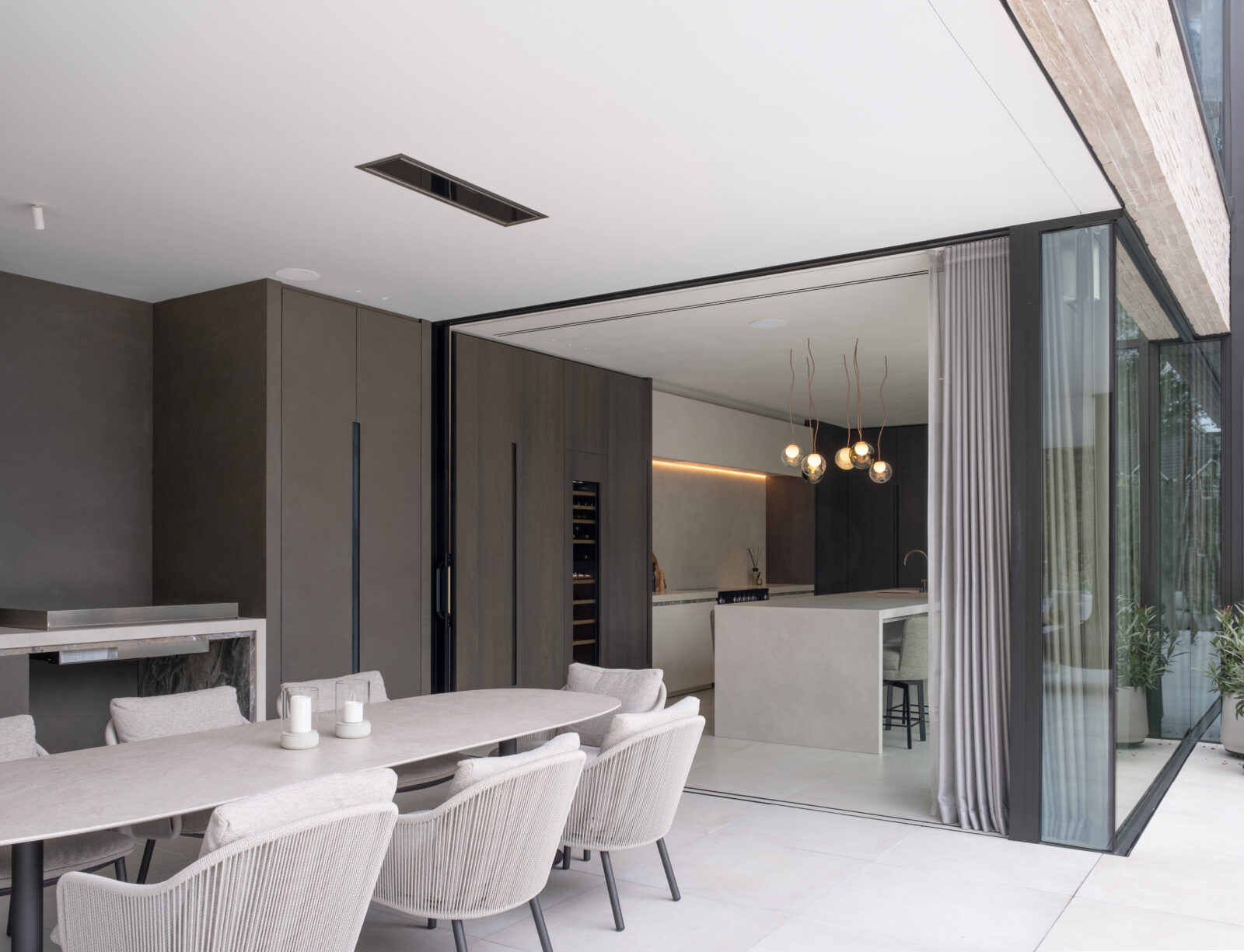

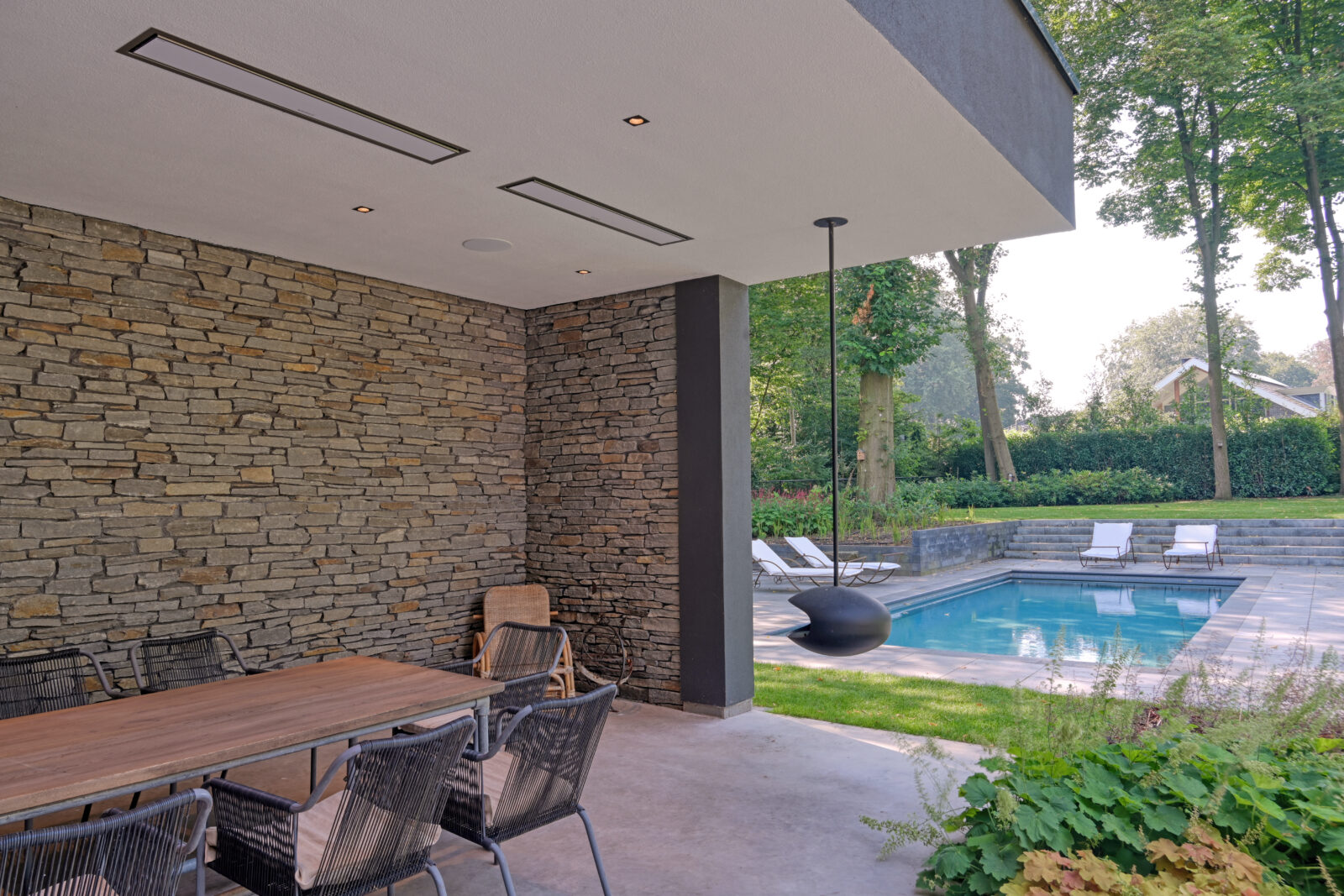

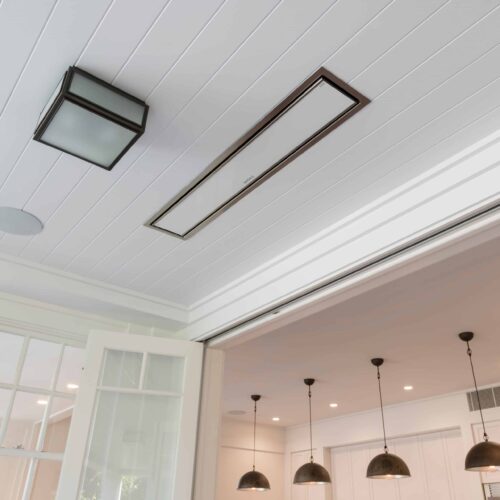

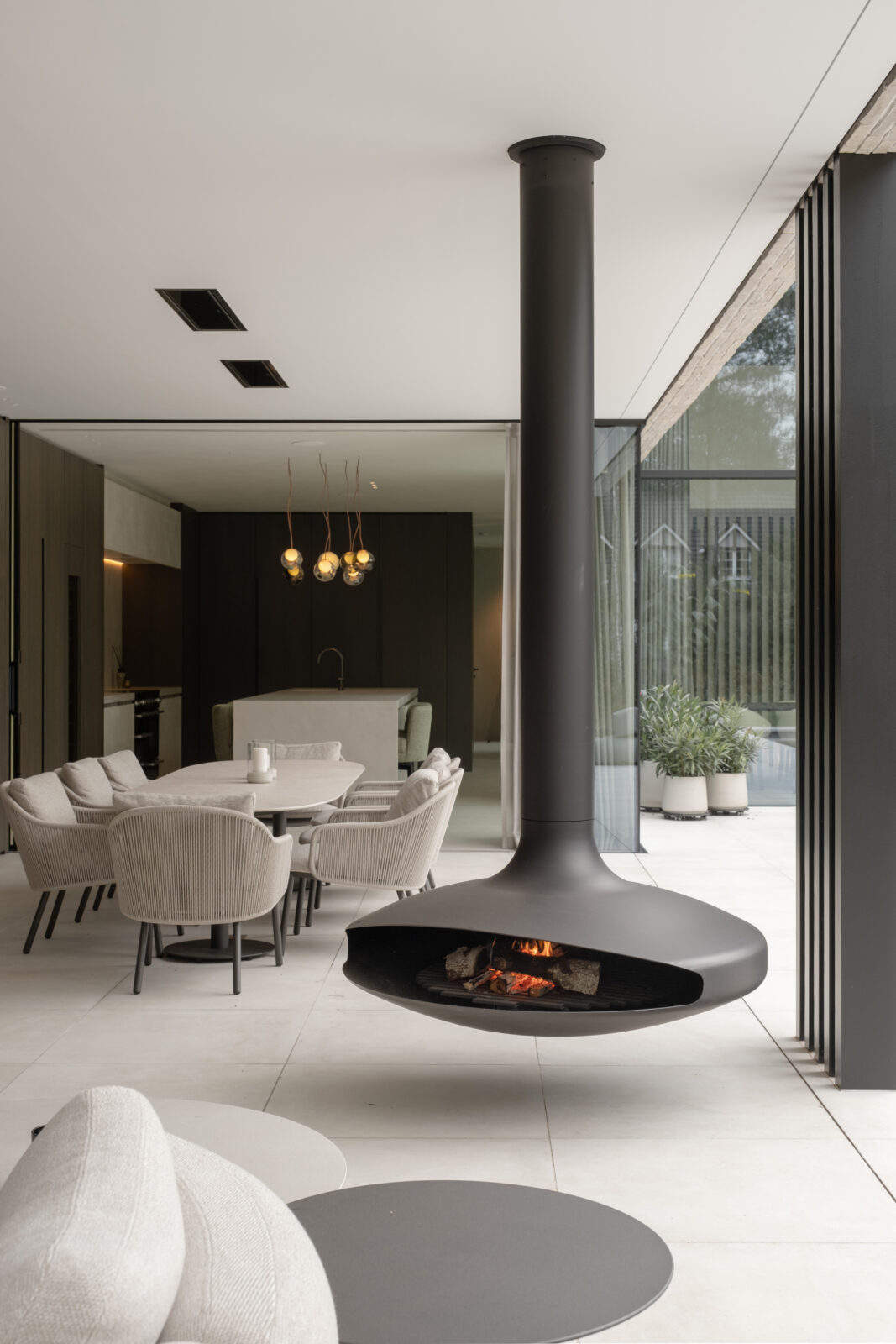

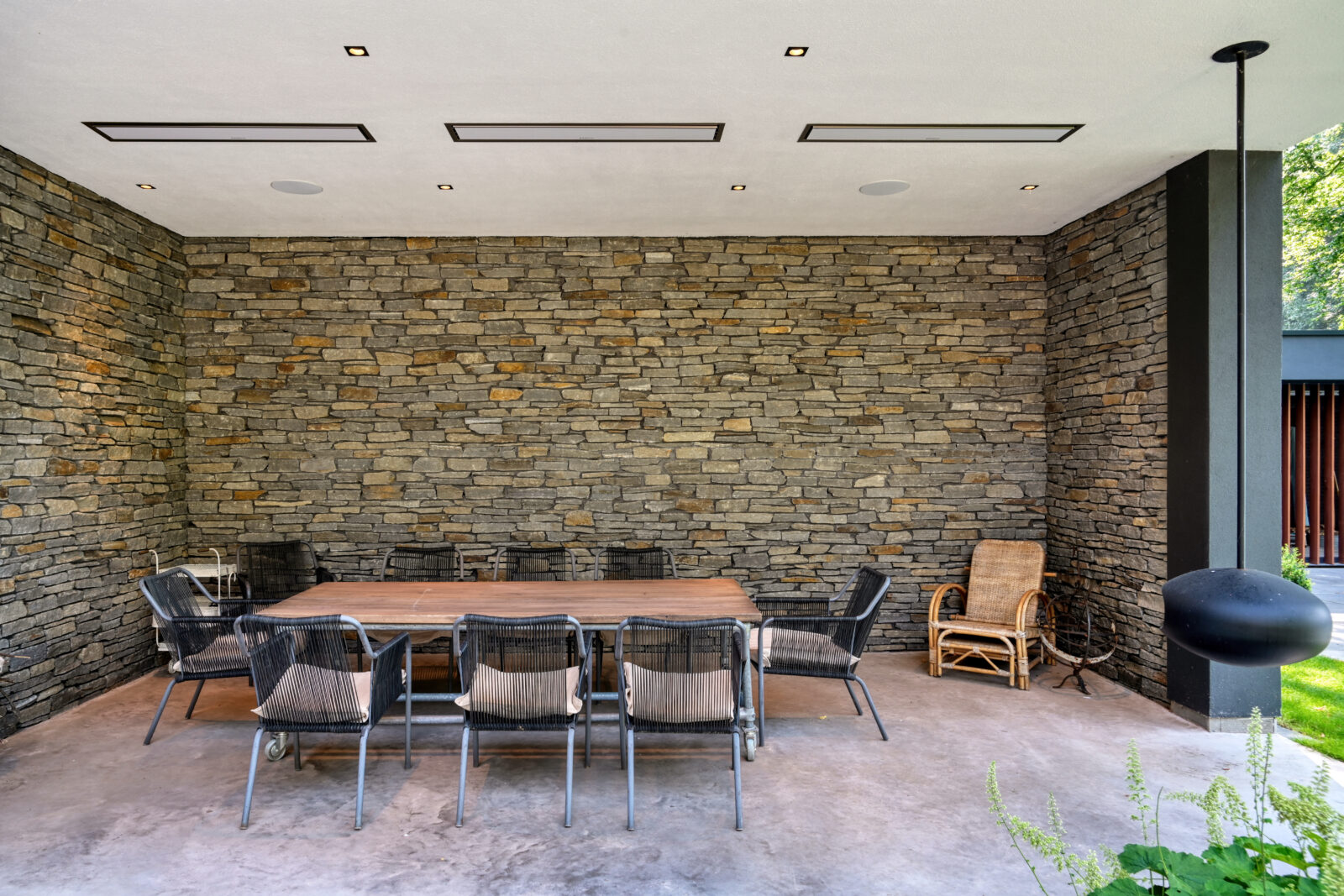

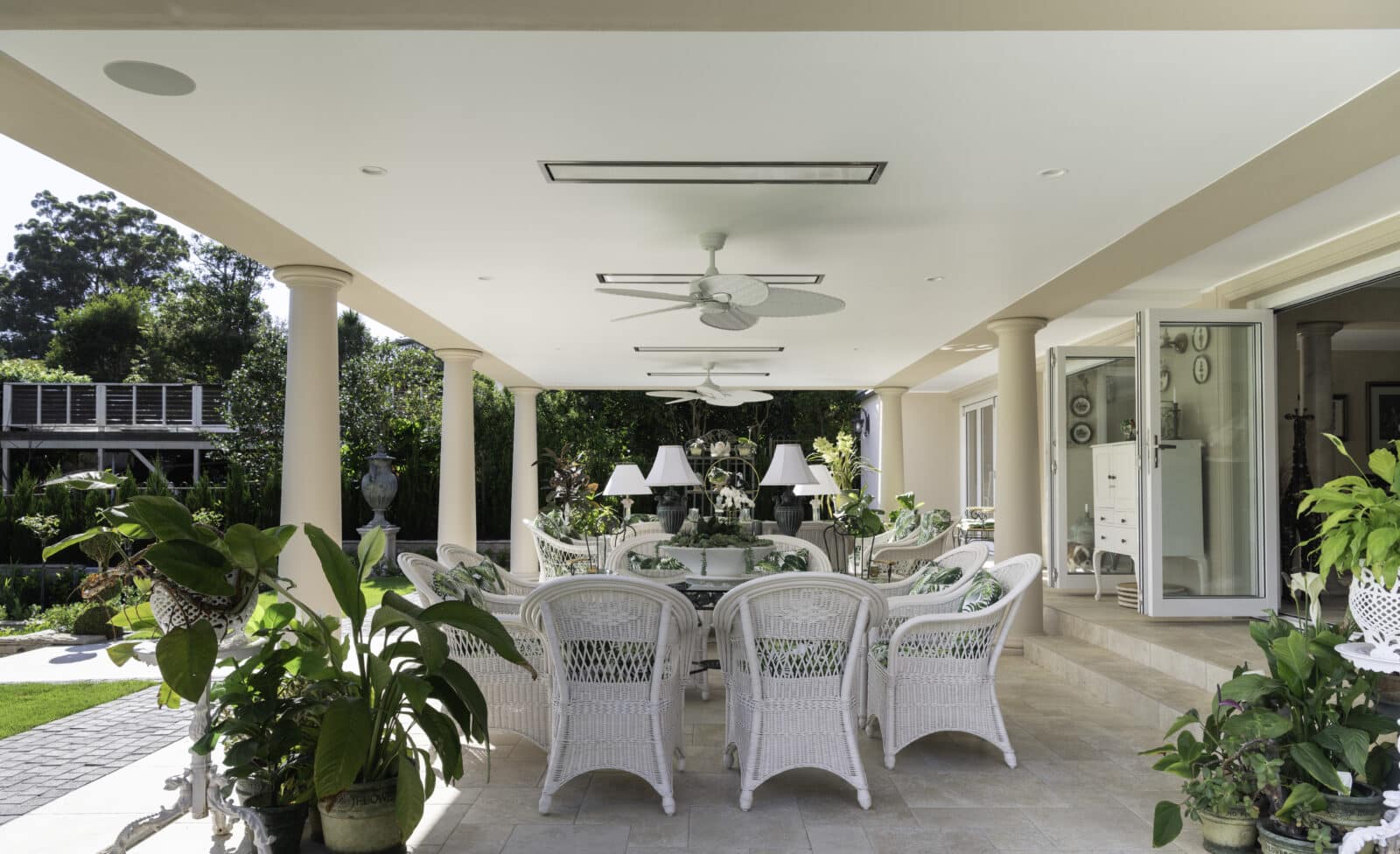

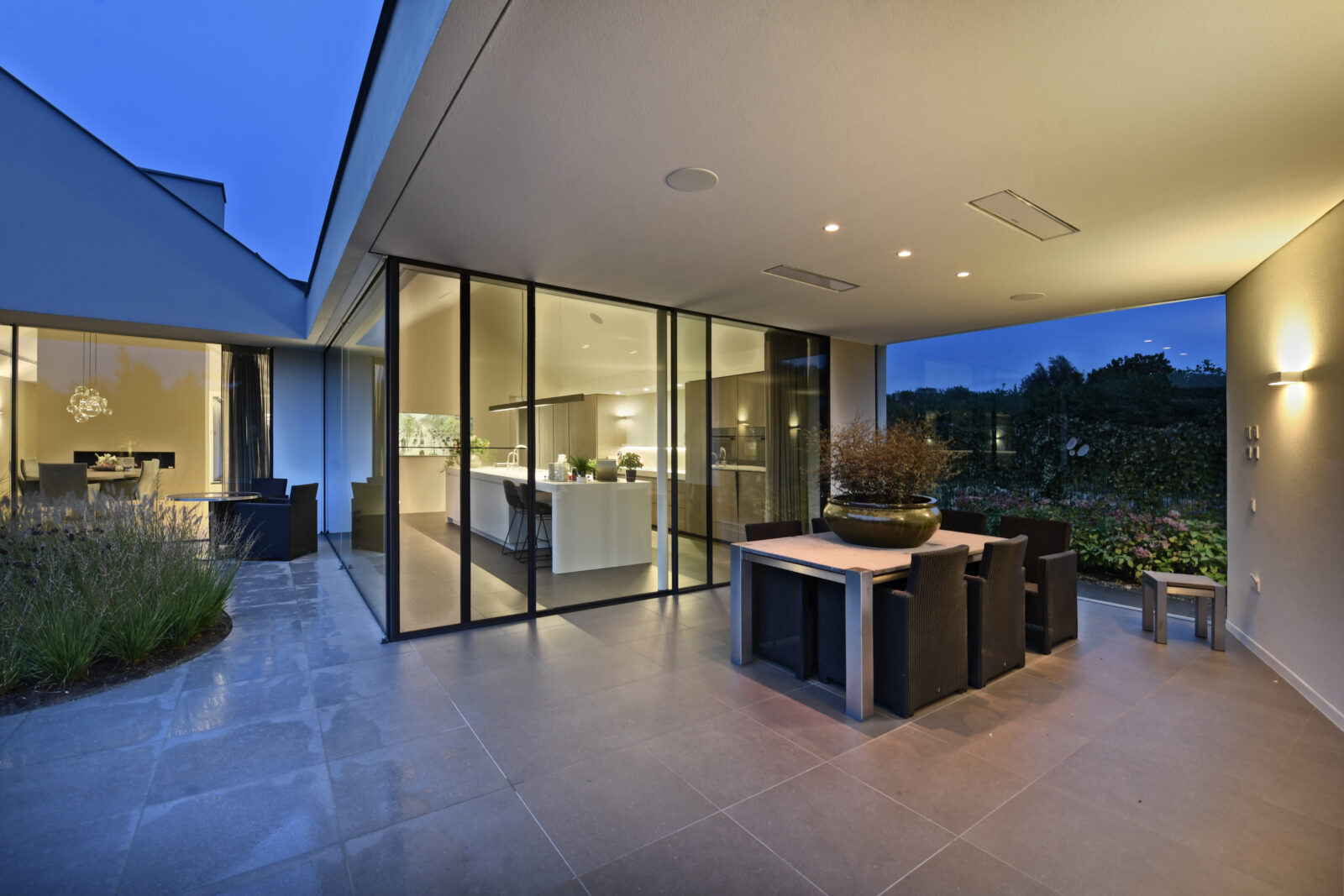

The heaters can be either wall mounted, pole mounted or recessed into the ceiling. Each heater is supplied with an 8" stainless steel pole. Recessing kits and longer poles for high ceilings can be ordered separately. Please refer to our instruction manual or contact our friendly design team to find out which installation and height is right for you.
