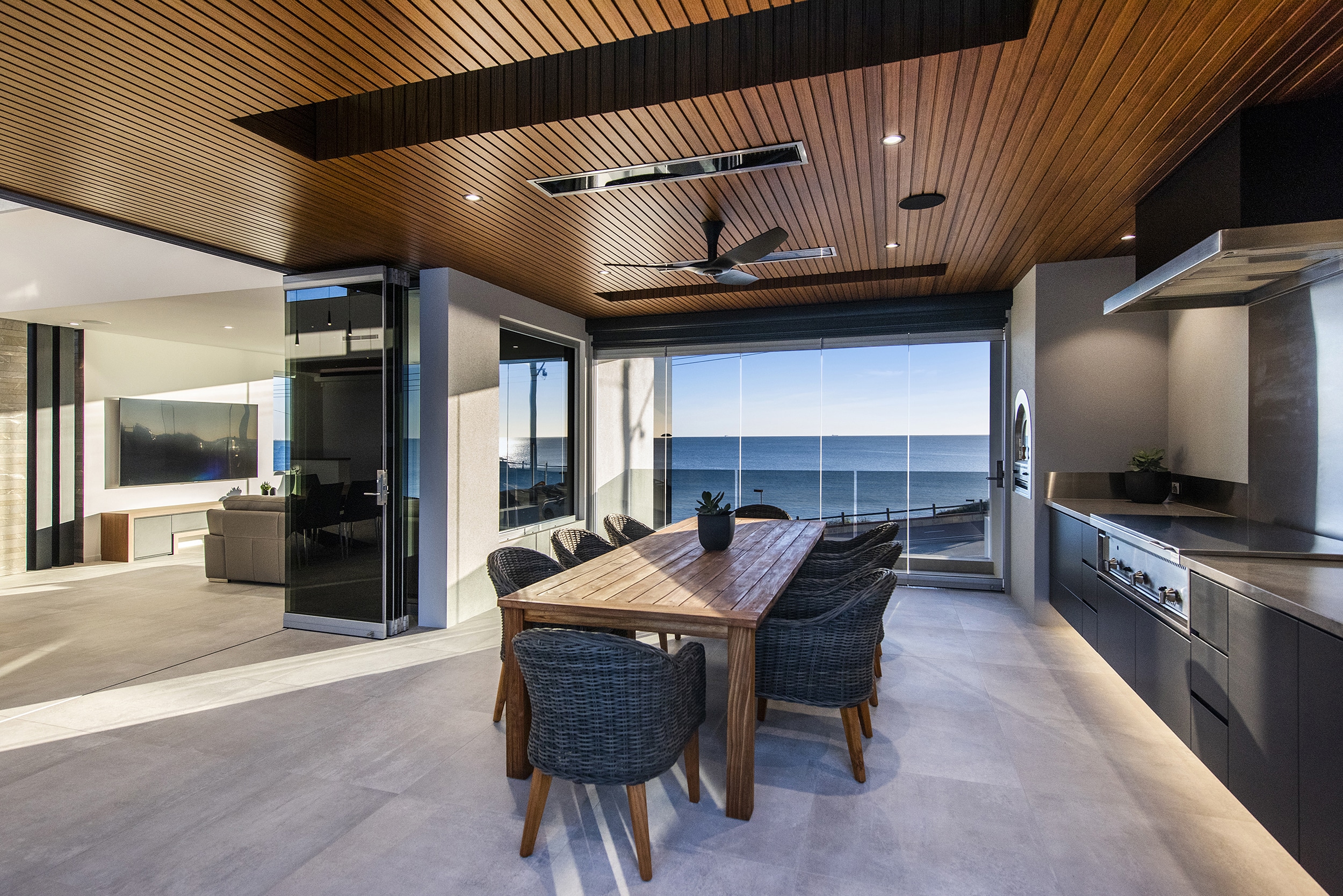

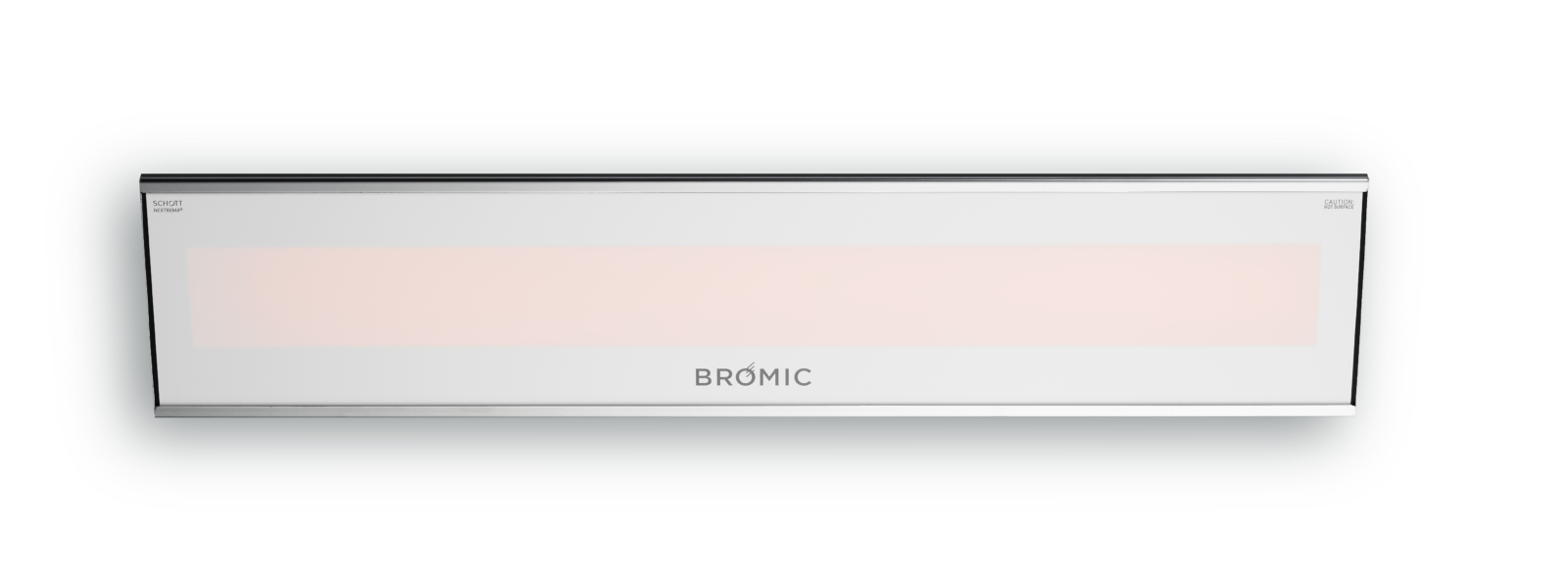

Outdoor Patio Heater Electric - Platinum Electric Recessed in White

Platinum Smart-Heat™ Electric Marine

Made of high-quality AISI316 Marine-Grade Stainless Steel, the Platinum Electric Marine heater series is built to be exceptionally durable and able to withstand the corrosive elements of coastal and marine environments.

  • Industry-Leading
    5-Year Warranty

    Offering peace of mind that the heater is built to last.

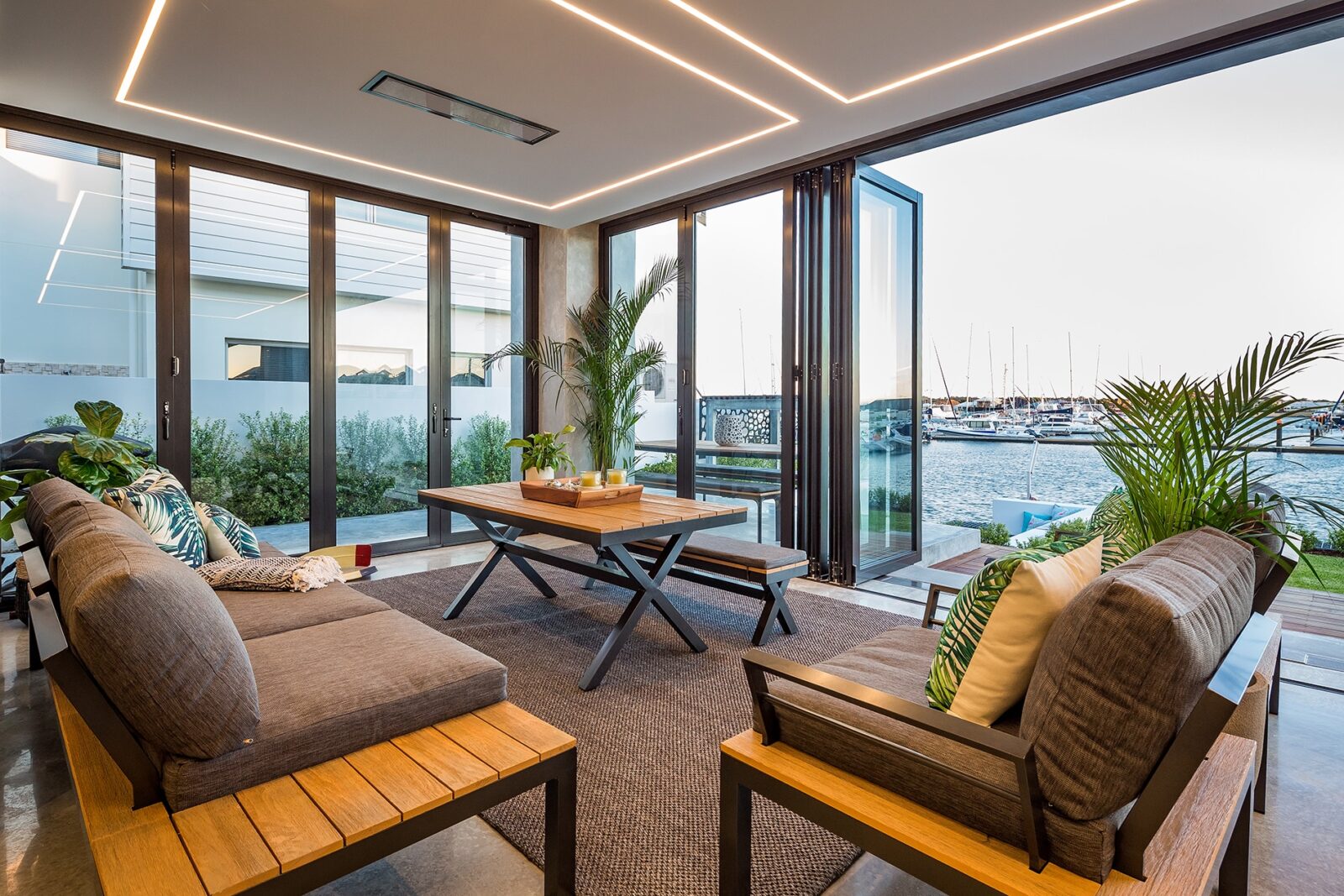

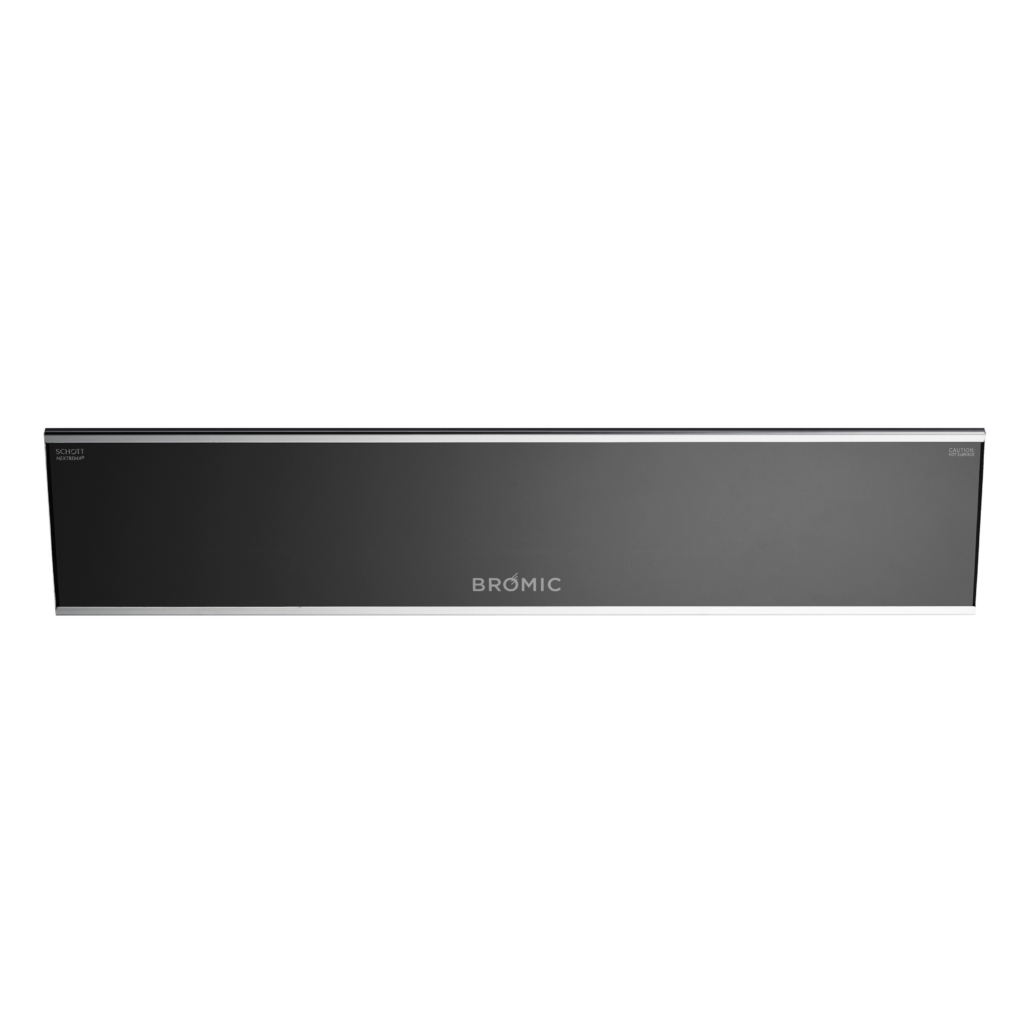

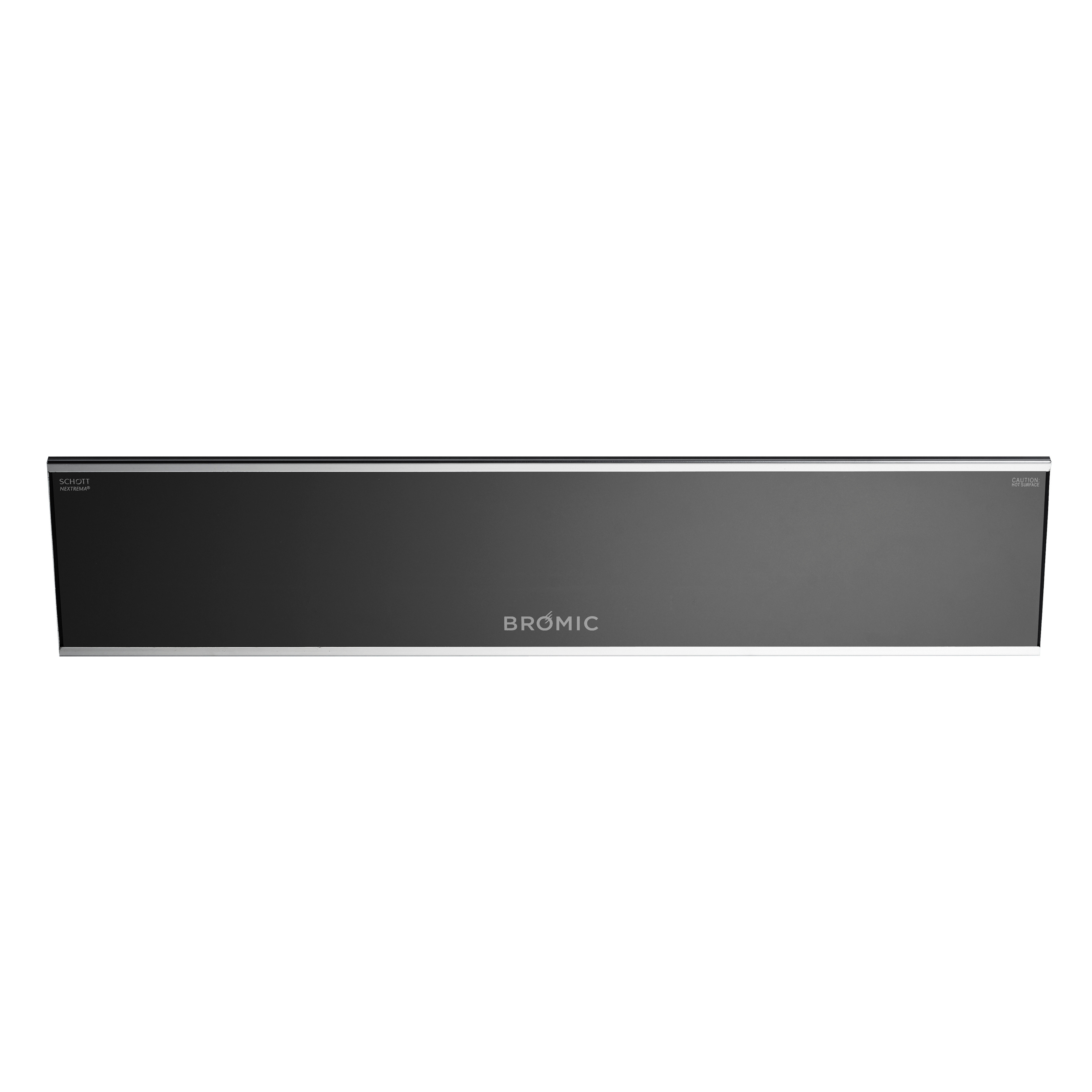

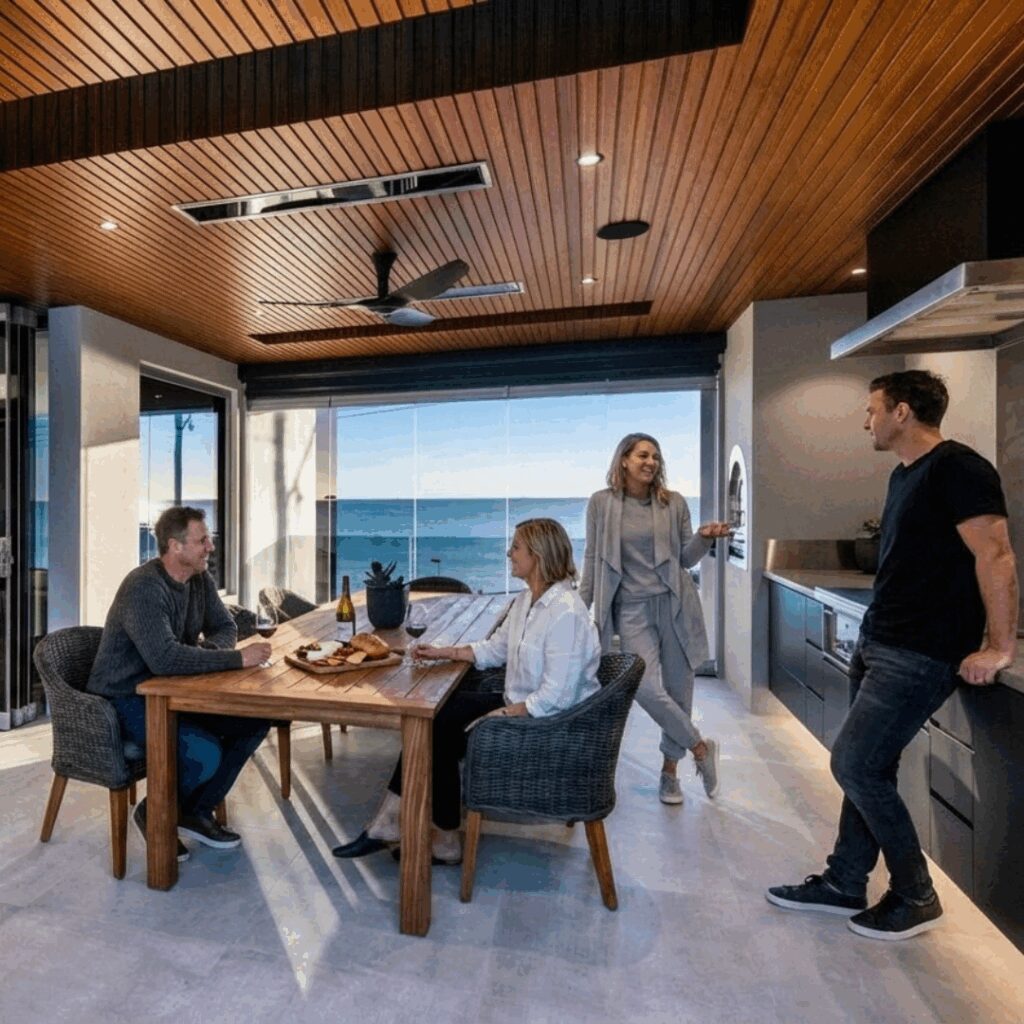

  • Black Recessed Electric Patio Heater

    AISI 316 Marine-Grade
    Stainless Steel

    Built with high-grade materials and a fully enclosed heater body.

  • Versatile Mounting
    Options

    Wall, ceiling and recessed mounting options.

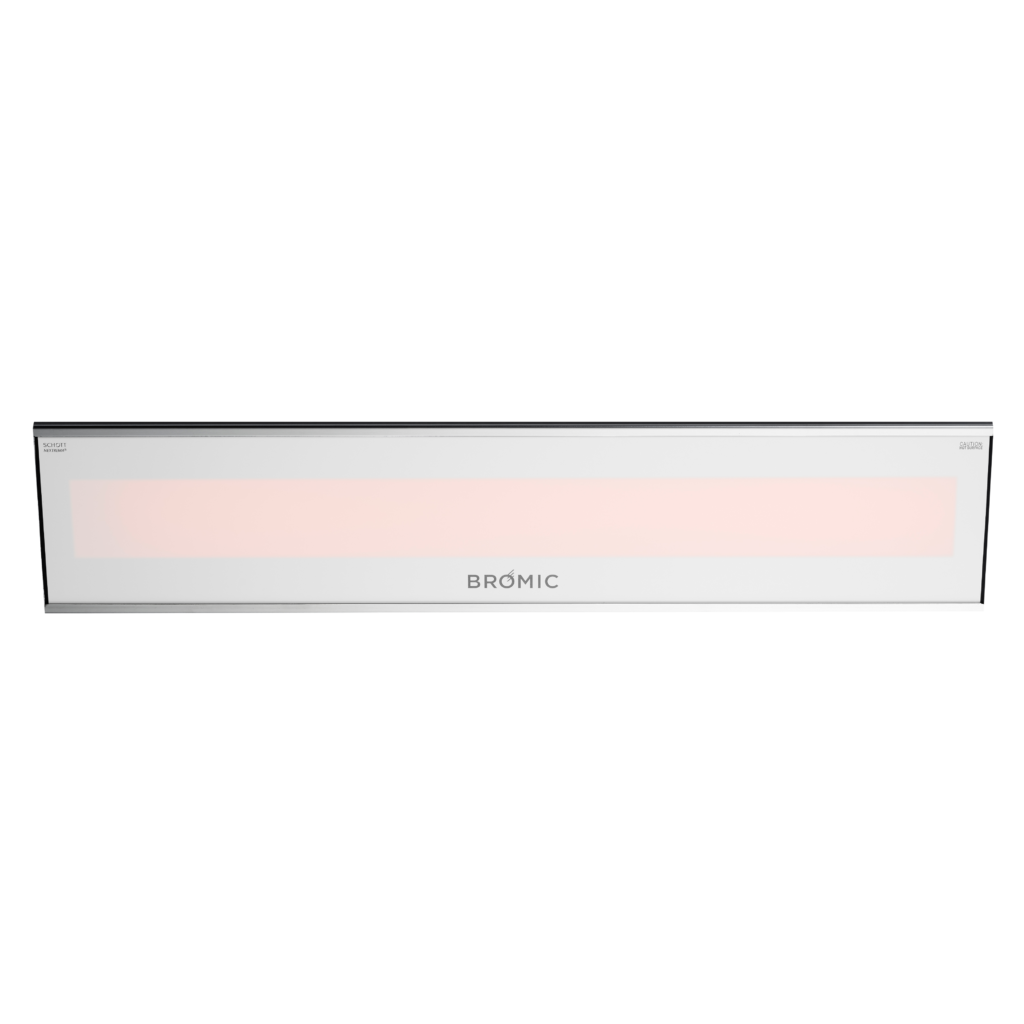

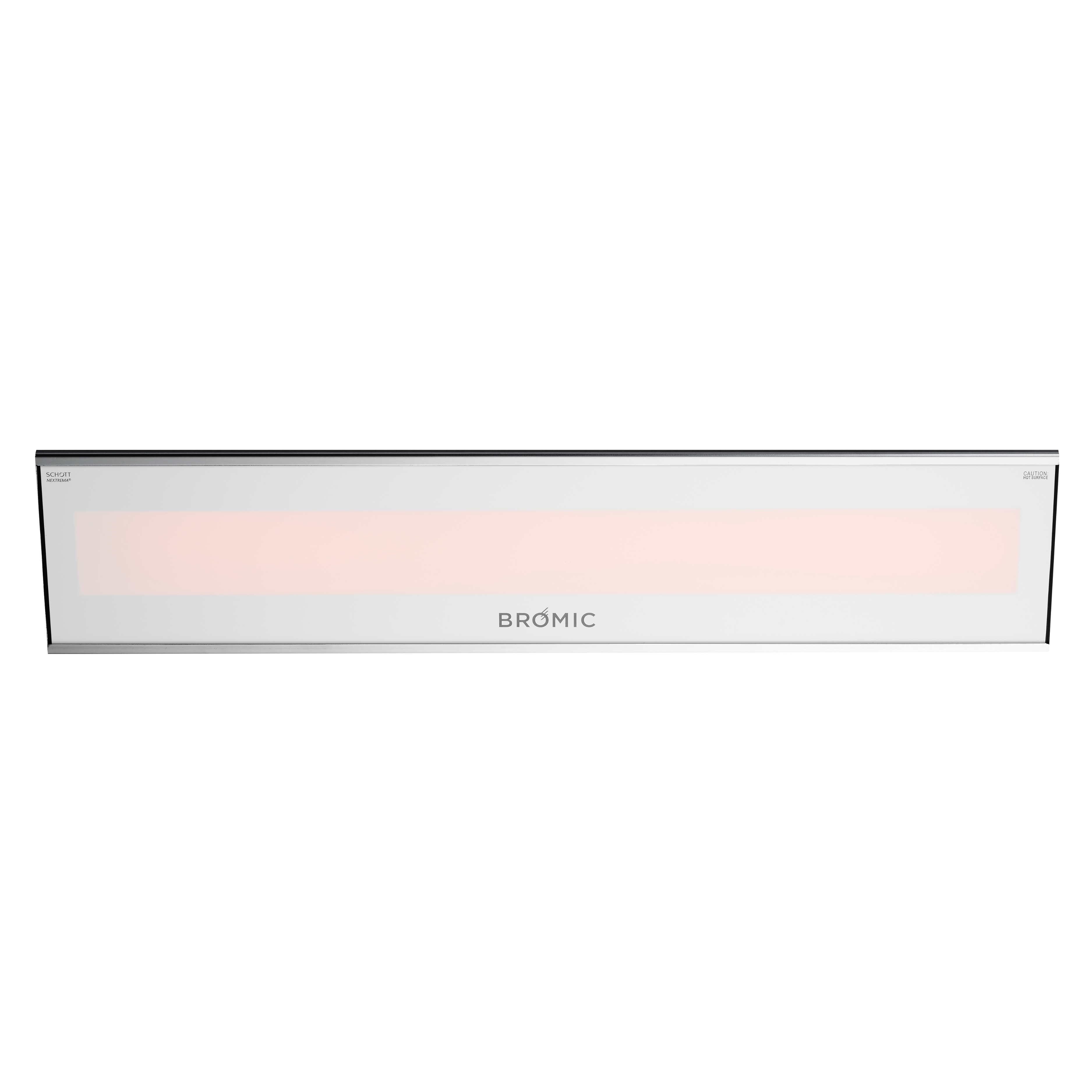

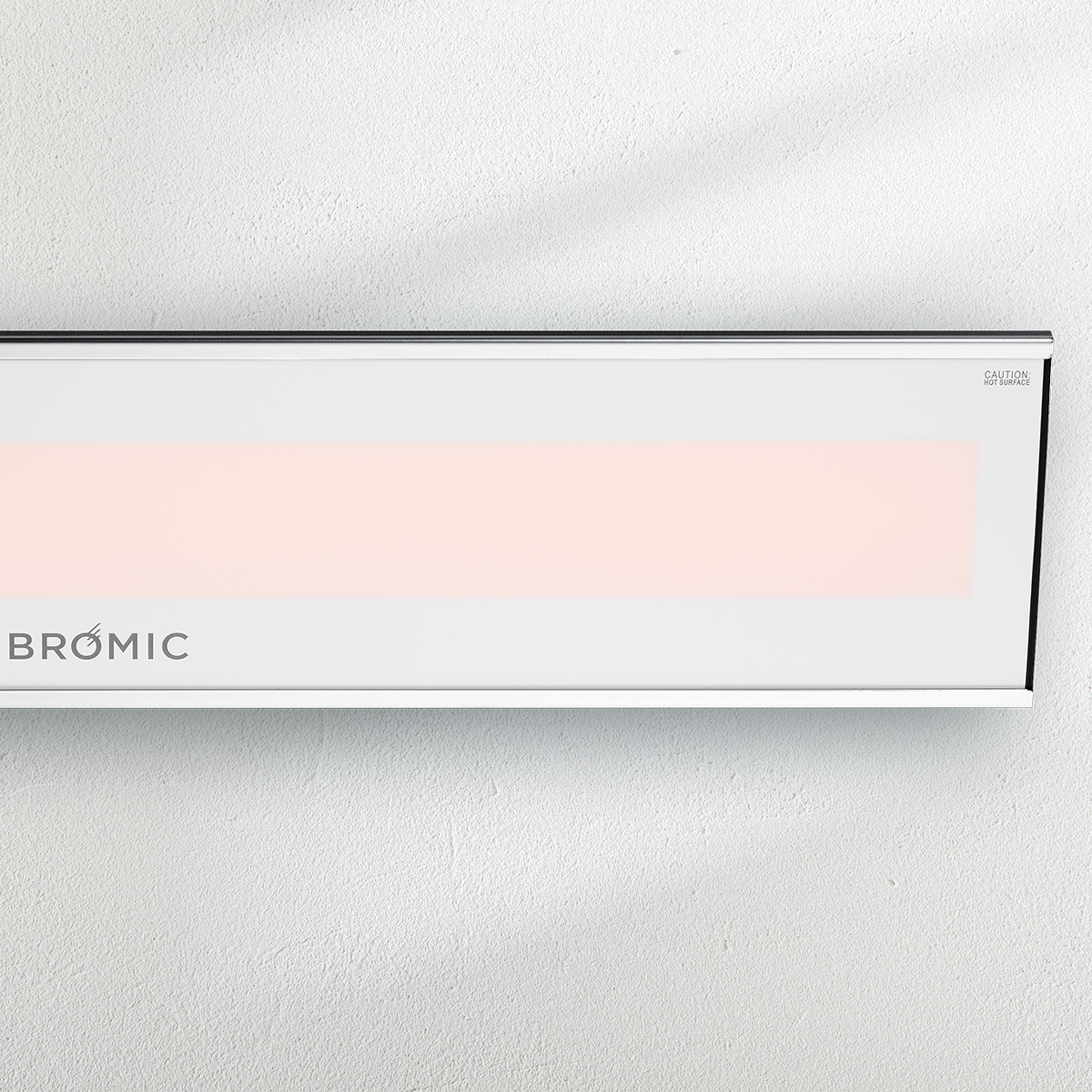

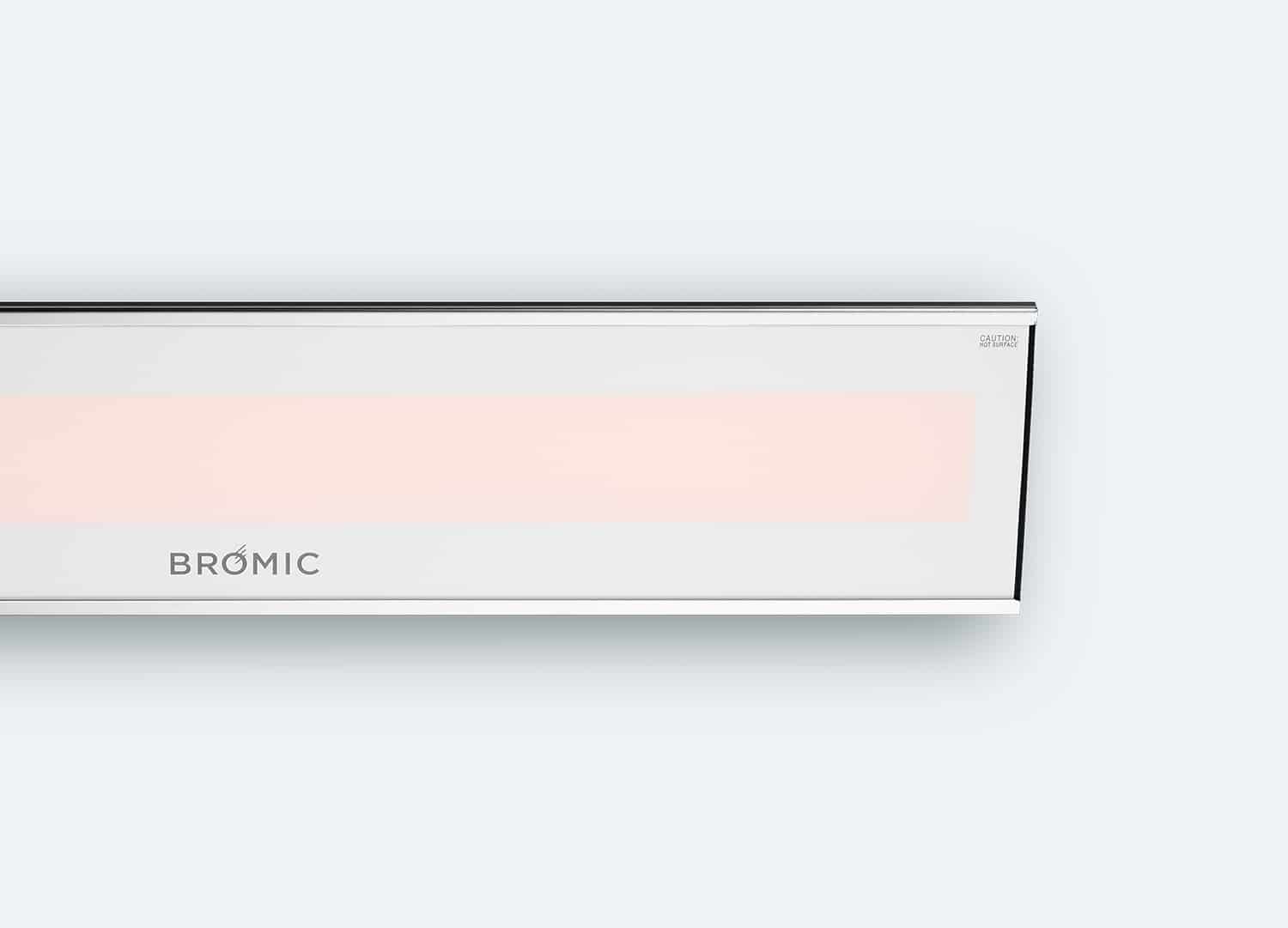

Bromic Heating Platinum Electric in White

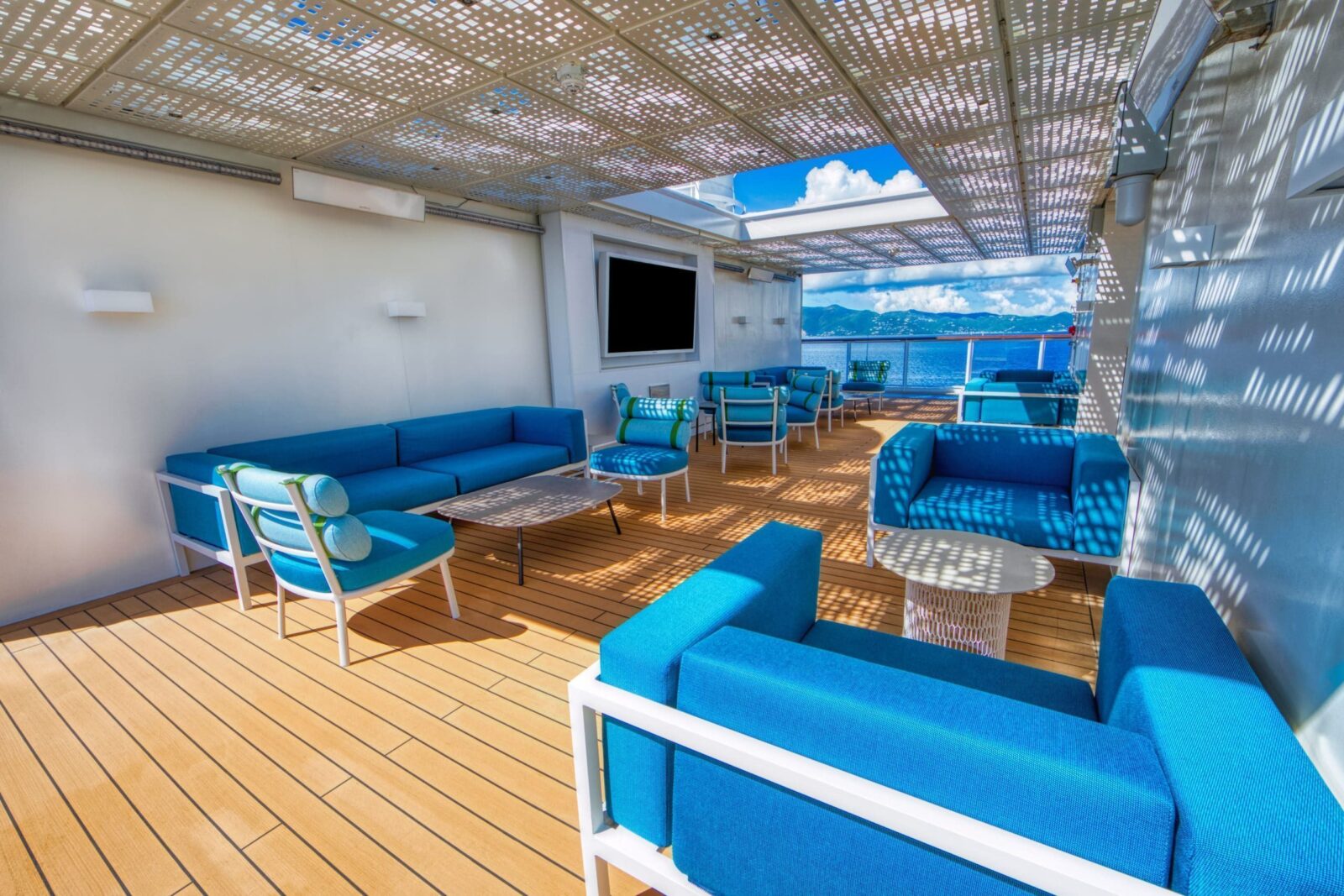

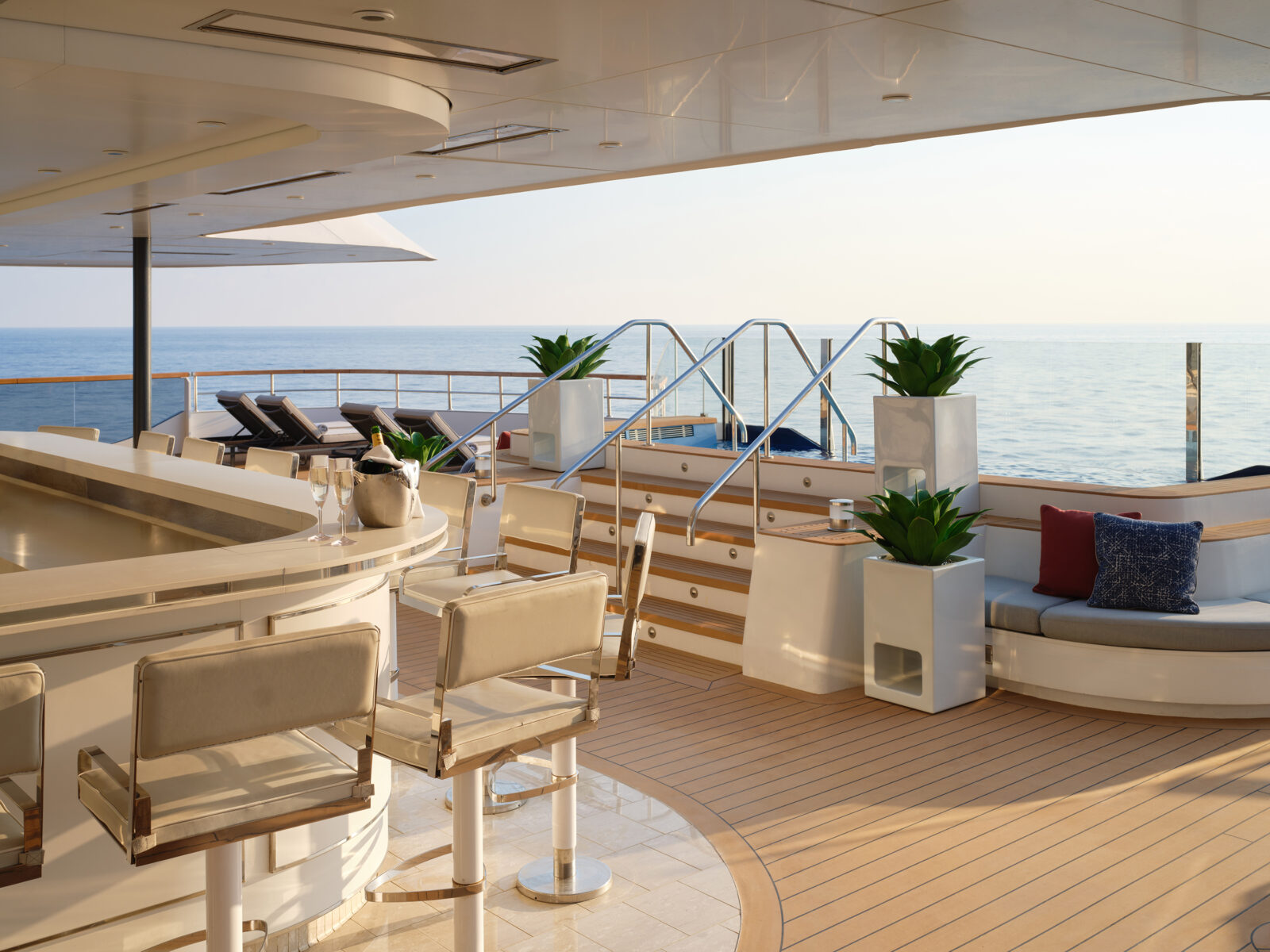

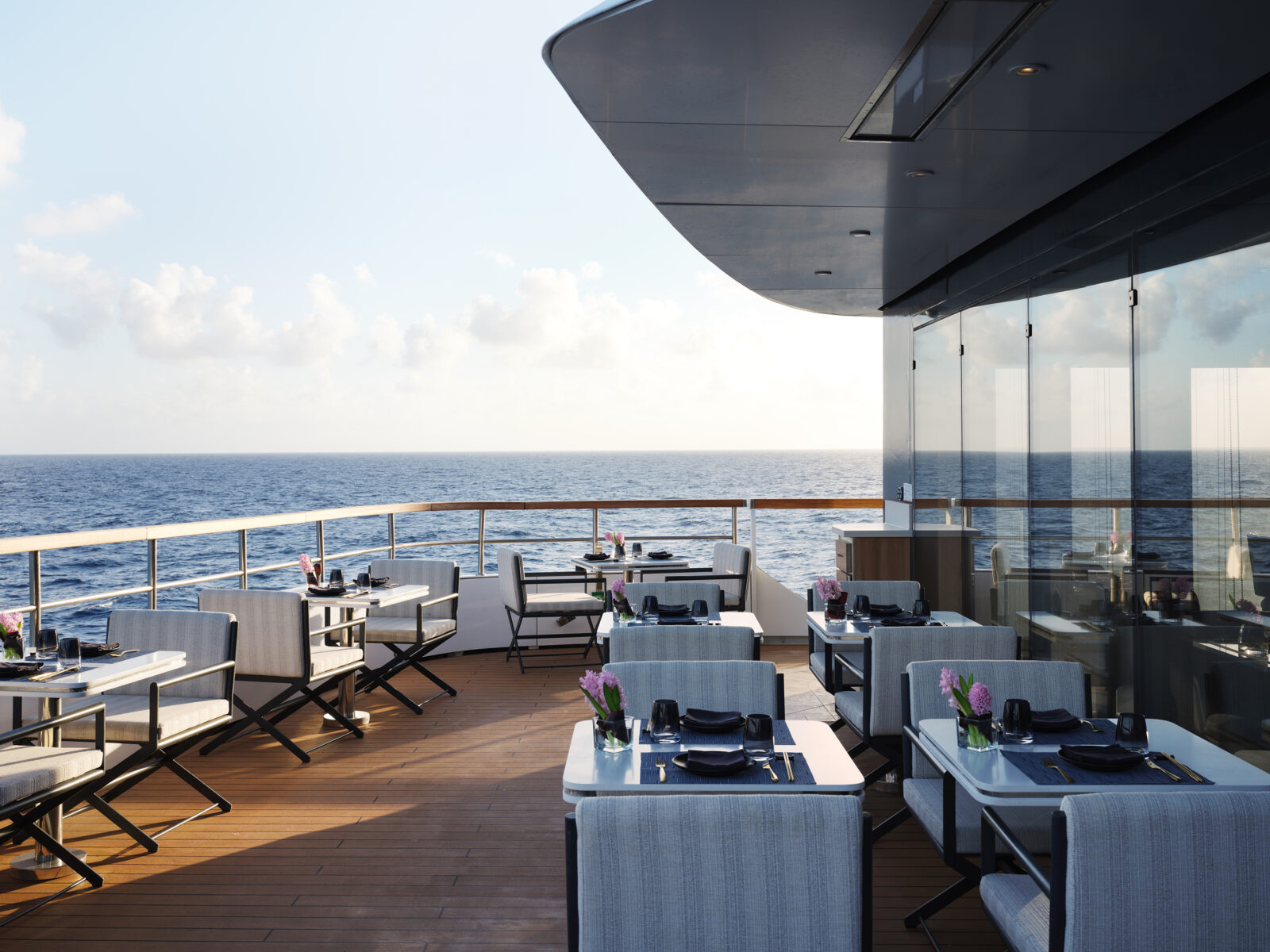

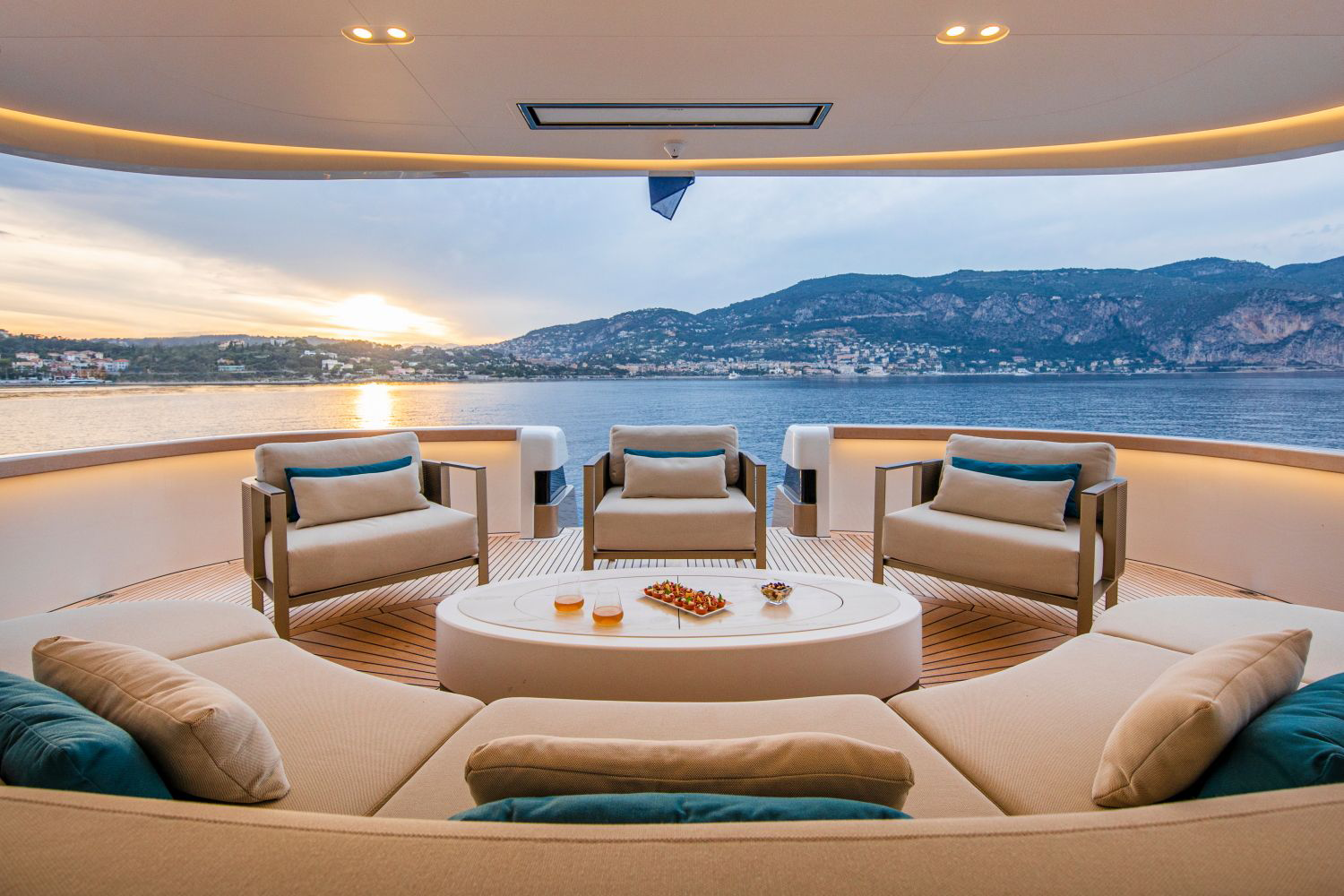

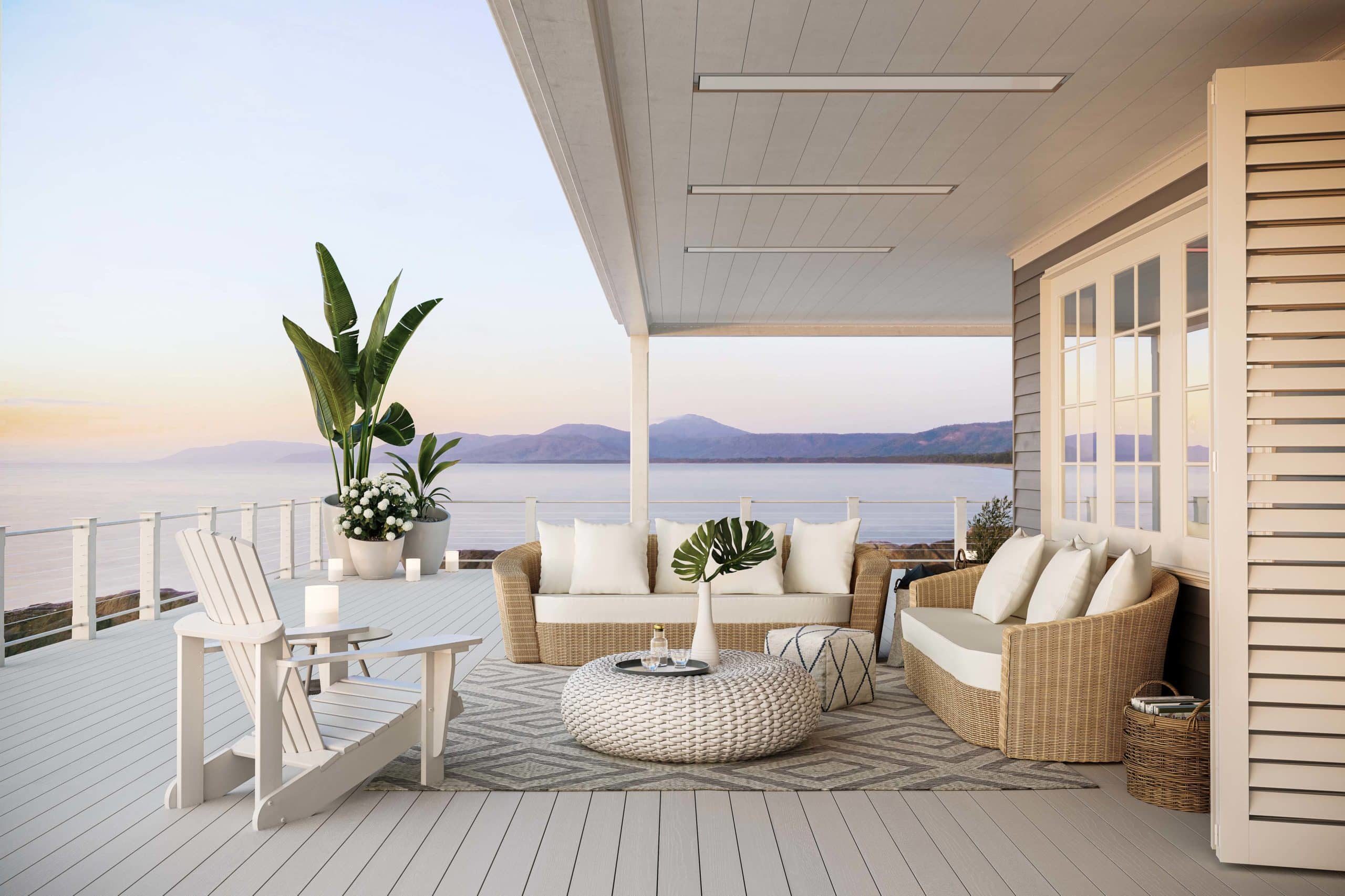

Superyacht and Cruise Ships Deck Heater - Platinum Electric Recessed in White
Overhead Electric Heater - Platinum Electric Ceiling Mounted in White

Platinum Smart-Heat™ Electric Marine

$2,883.00 – $4,648.00

To counteract the hurdles of installing an outdoor heater near the coast where standard stainless steel can rust and deteriorate, Bromic engineered the Platinum Electric Marine heater series.

Built to withstand corrosive environments with high grade materials, a fully enclosed heater body to protect internal elements, and an easy to maintain, ceramic-glass surface, this exceptional heater is backed by an industry-leading 5-year warranty offering peace of mind that this heater is built to last. (5 year warranty is for land based applications only does not cover installations on marine vessels).

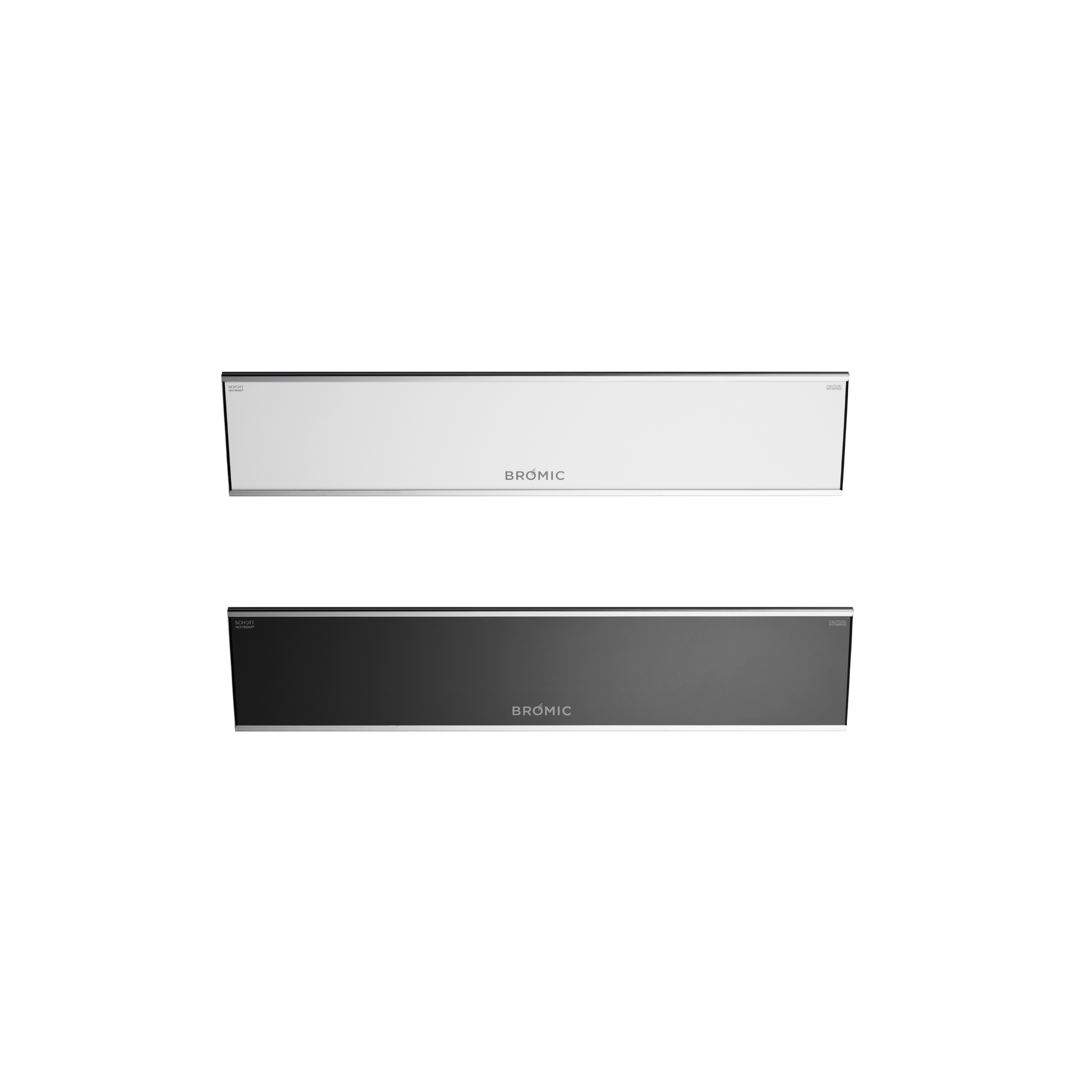

Available in a white or black finish with a variety of mounting options including wall, ceiling, and recessed, the Platinum Electric Marine heater is the ideal solution to enrich the comfort experience of owners of coastal residences and superyachts as well as guests on cruise ships.

Platinum Electric Marine Product Brief Platinum Collection Guide Download Full Catalog
SKU: N/A Category:
Talk to Sales

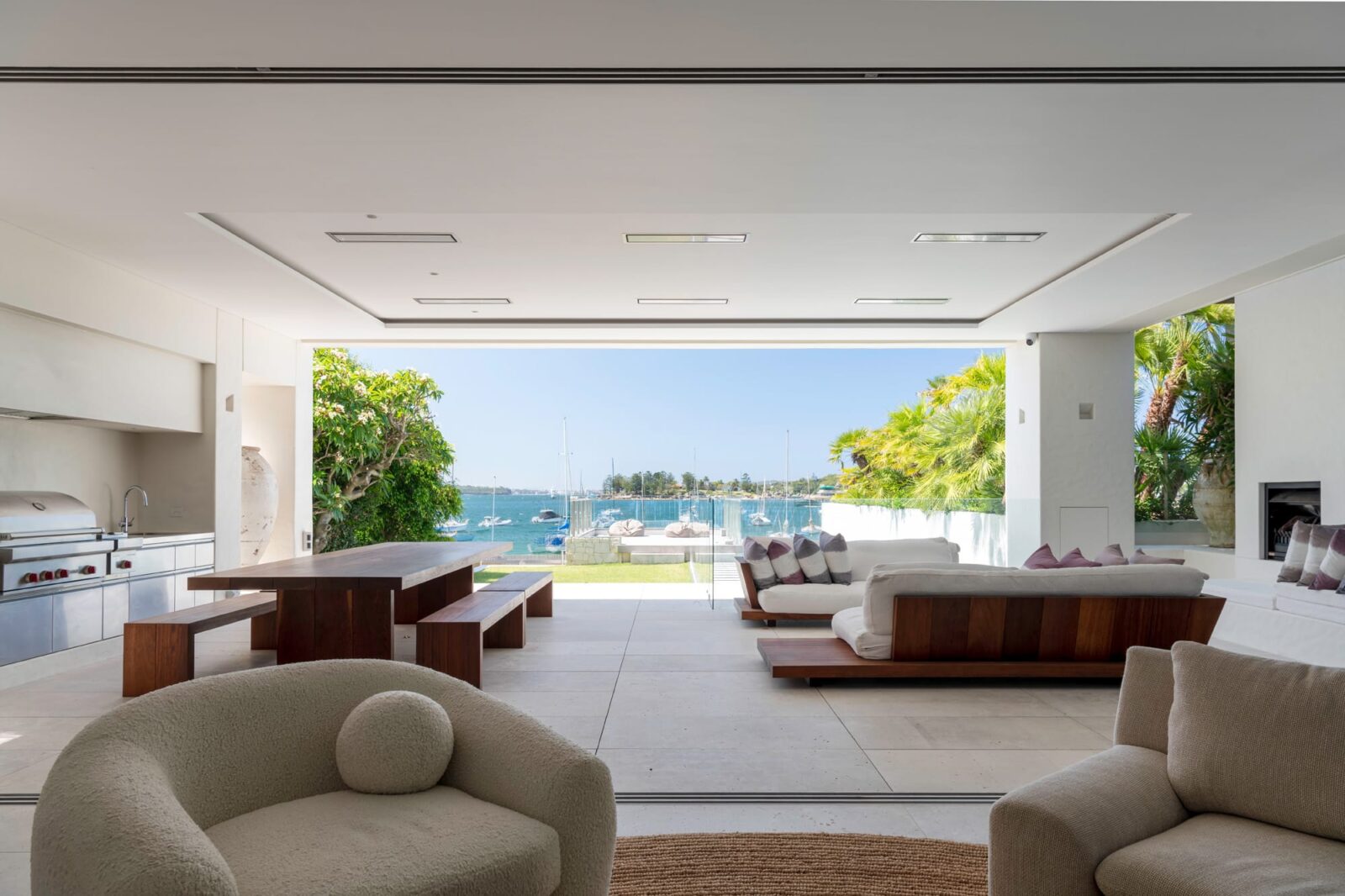

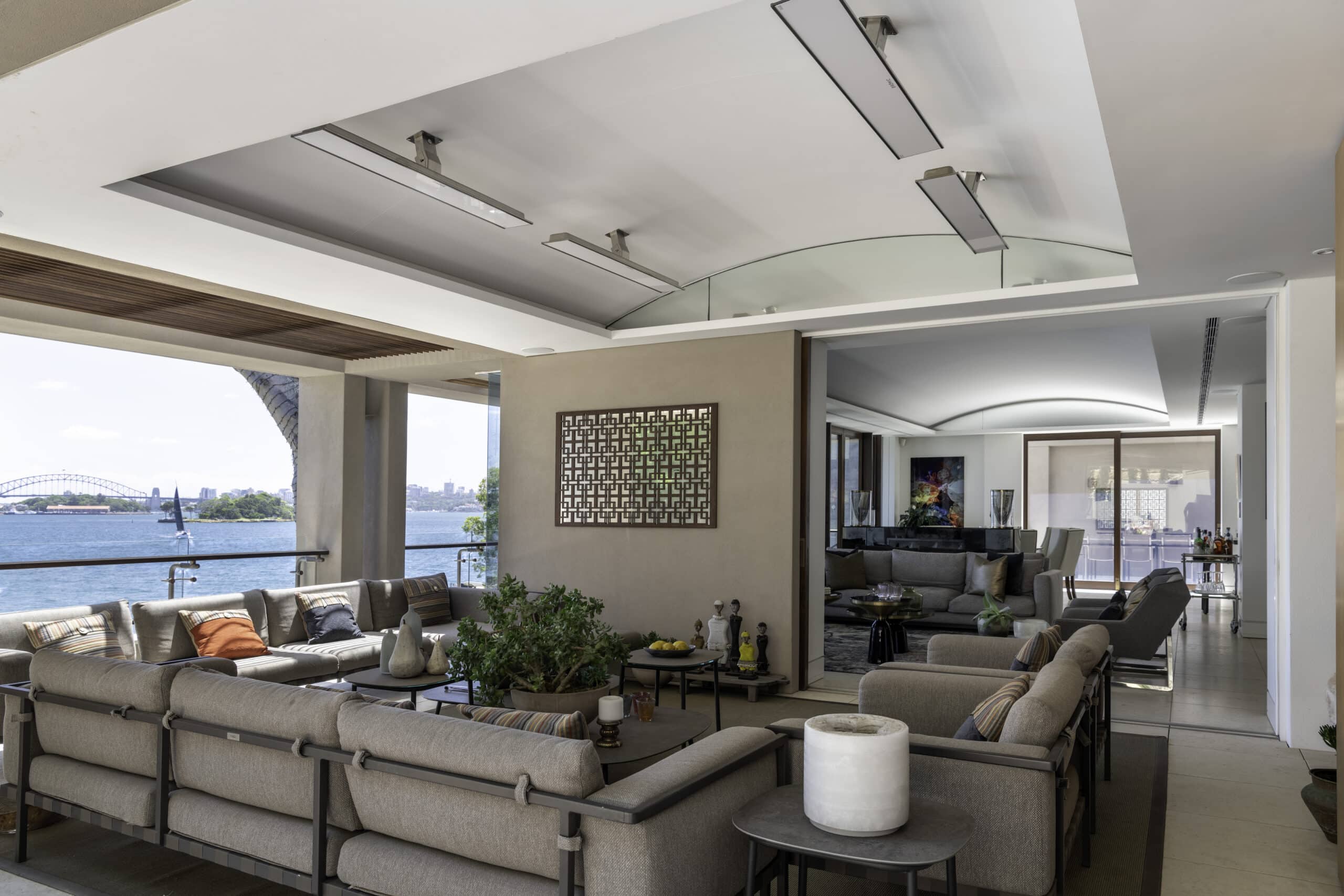

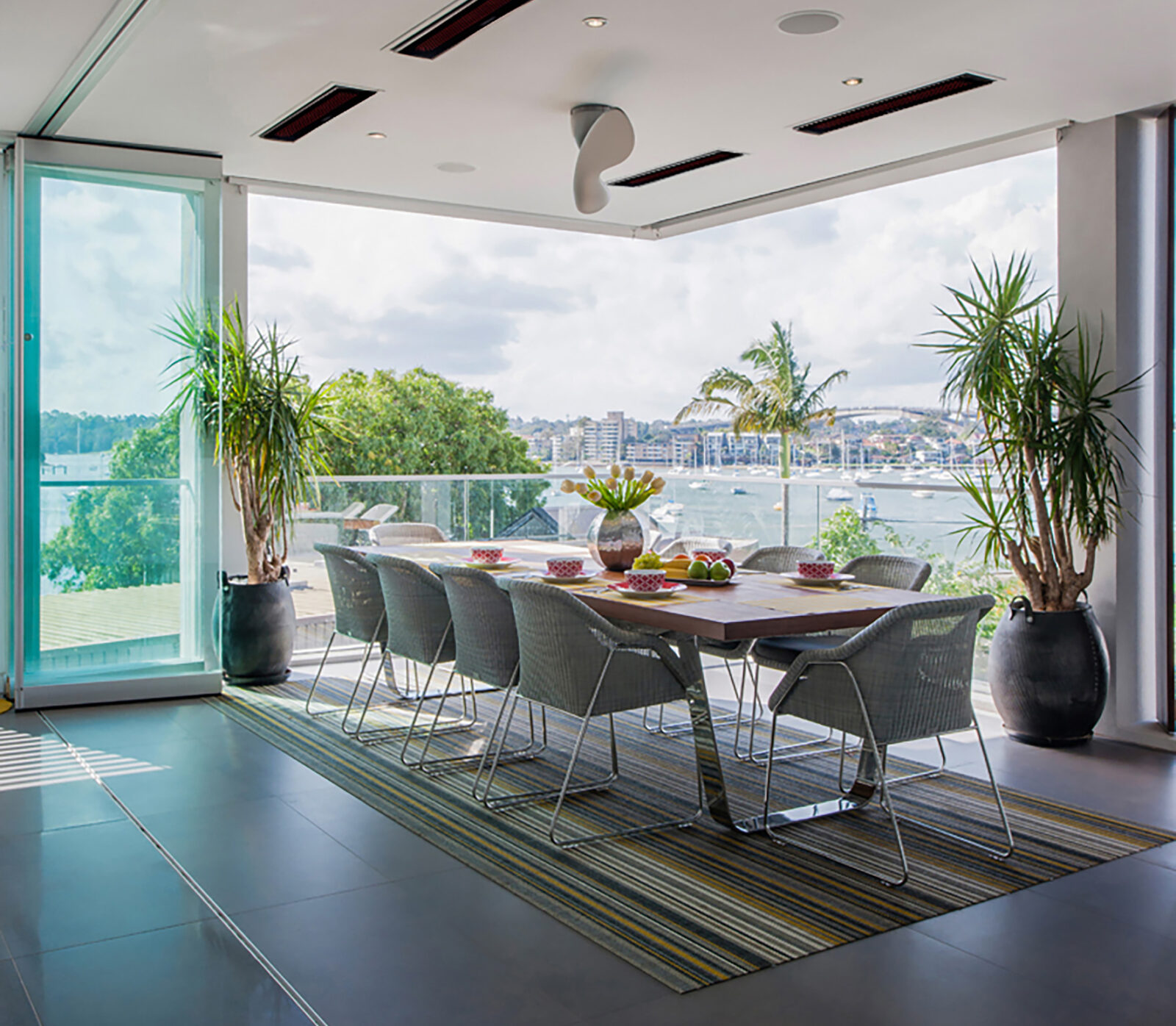

Australia Sydney Greenwich Residence
Built to Withstand Corrosive Elements

What is Coastal Corrosion?

The high level of relative humidity in coastal areas can add to the deterioration of metals, accelerating the electrochemical reactions that cause rusting and other forms of corrosion.

Learn More

Recommended Controls & Accessories

White Electric Outdoor Heater
  • More
    Close

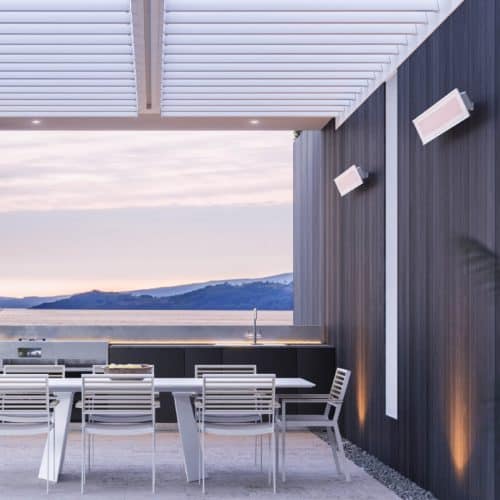

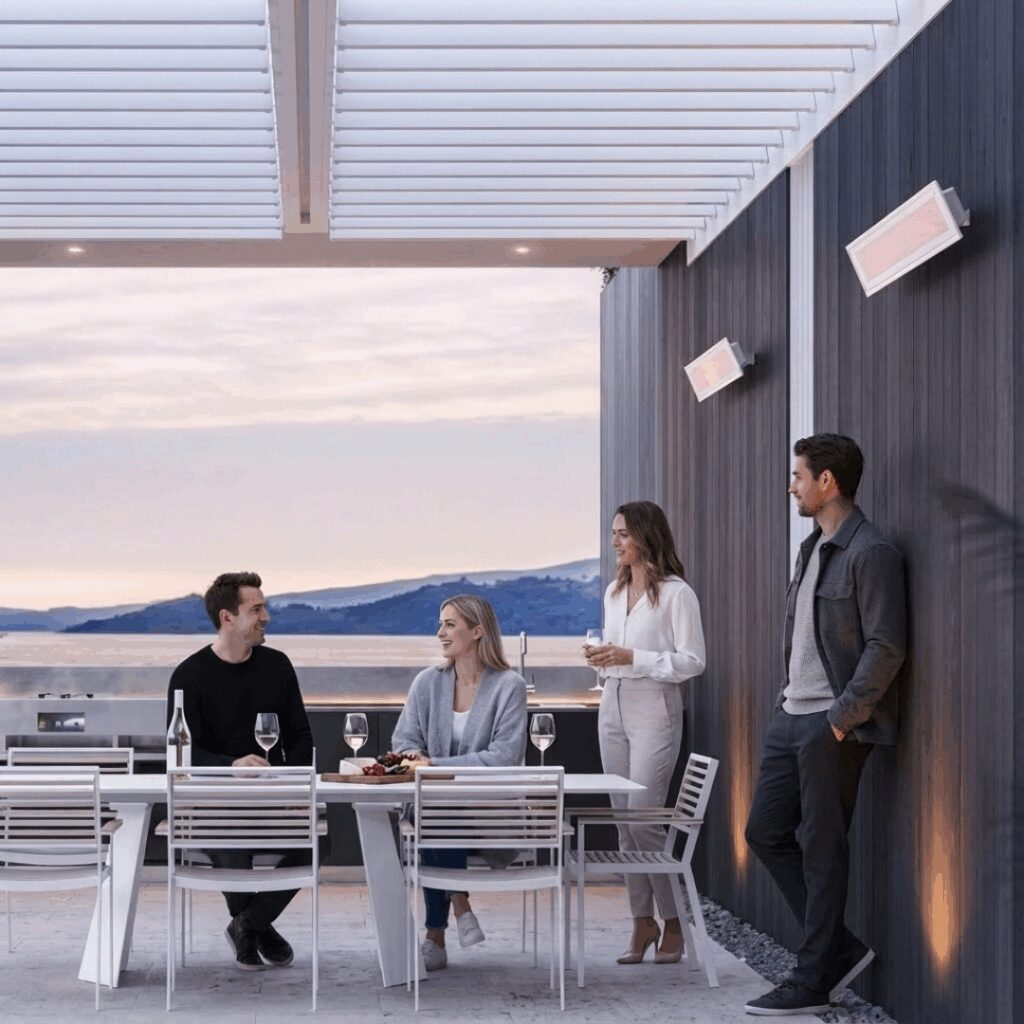

    Adjustable Mounting Brackets

    For efficient, directional heat distribution.

  • More
    Close
    Compact & Elegant Design

    Seamless integration into design-focused spaces with minimized light emissions and an easy-to-clean premium black or white finish.

  • More
    Close
    Slim-line Design

    Minimal ceiling recess clearance required. Flush-mounted design aesthetics.

  • More
    Close
    High Performance Stainless-Steel

    Premium 316 grade stainless-steel suitable for marine and coastal environments.

  • More
    Close
    Tinted Glass-Ceramic Fascia

    Spread heat evenly across any area while minimizing light emission.

  • More
    Close
    Set and forget

    Simple and easy to use, with single-switch activation and smart system compatibility.

  • More
    Close
    Sealed Element

    Sealed compartment with thin film elements to prevent corrosion.

Specifications

Reference the specification guide below to help you select the correct solution for your needs.

MODEL 2300W MARINE SERIES 2300W MARINE SERIES 3400W MARINE SERIES 3400W MARINE SERIES 4500W MARINE SERIES 4500W MARINE SERIES
FUEL TYPE ELECTRIC ELECTRIC ELECTRIC ELECTRIC ELECTRIC ELECTRIC
COLOR BLACK WHITE BLACK WHITE BLACK WHITE
MODEL # BH0320015 BH032001 BH0320016 BH0320018 BH3622002 BH3622003
HEAT AREA 65ft2 65ft2 108ft2 108ft2 143ft2 143ft2
RATED CURRENT * 220-220V/9.6A
208V/11.1A**		 220-220V/9.6A
208V/11.1A**		 220-240V/14.2A
208V/16.3A**		 220-240V/14.2A
208V/16.3A**		 220-240V/18.8A
208V/21.6A**		 220-240V/18.8A
208V/21.6A**
MINIMUM FLOOR CLEARANCE Wall 72”
Ceiling 96”		 Wall 72”
Ceiling 96”		 Wall 72”
Ceiling 96”		 Wall 72”
Ceiling 96”		 Wall 72”
Ceiling 96”		 Wall 72”
Ceiling 96”
CONTROL OPTIONS 2300W MARINE SERIES 3400W MARINE SERIES 4500W MARINE SERIES
ON | OFF ✓ ✓ ✓
DIMMER REMOTE ✓ ✓ ✓
MASTER REMOTE *** ✓ ✓ ✓

*Available in varying voltages: 220/240v and 208V.

**208V version recommended for land-based commercial applications only and not Lloyd’s Register Certified.

***Independently control up to six zones of heaters with unlimited heaters per zone from a single remote. Dimmer controller required. Control operates within 100ft of heaters

Downloads

Dimensions

Heat Blooms

Mounting Options

Clearances

Installation

Installation must be carried out by a licensed and authorized technician in accordance with local electrical codes. Please refer to our clearance requirements and consult the installation manual for further details.





Downloads

BIM Files

To download BIM files, fill out the form below:

FAQs

Do the Platinum Electric Marine heaters come with a controller?

No, the controllers can be purchased as an additional accessory.

Can I install the Platinum Electric heater myself?

No, the heater must be installed by a licensed technician.

What is radiant heat?

Radiant heat works like the sun. Instead of heating the air around you, it heats people and objects. This makes radiant heat a more effective outdoor heating source, as it is less likely to be affected by the wind.

Are the heaters waterproof?

Our Platinum Electric Marine heaters are made from premium 314 stainless steel and IPX5 rated, and therefore water-resistant (low pressure water jets). However, Bromic does recommend that they are best mounted under cover and not directly exposed to rain and salt mist to ensure they maintain their aesthetic appeal.

What mounting options are available?

The heaters can be either wall mounted, pole mounted or recessed into the ceiling. Each heater is supplied with an 8" stainless steel pole. Recessing kits and longer poles for high ceilings can be ordered separately. Please refer to our instruction manual or contact our friendly design team to find out which installation and height is right for you.
